AD74413RBCPZ-RL7 - Analog Devices

Description: Quad-Channel, Software Configurable Input and Output

Download AD74413RBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD74413RBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

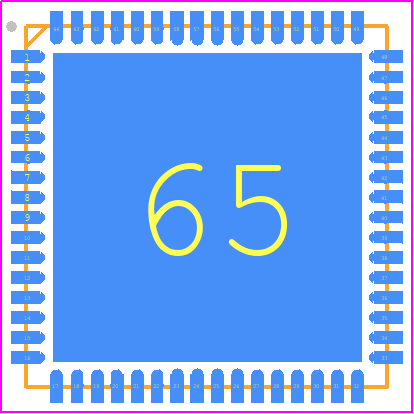

AD74413RBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-64
click to zoom
3D Models
AD74413RBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-64
click to zoom

AD74413RBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD74413RBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    28.8 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD74413RBCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD74413RBCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power supply decoupling.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed in a thermally stable environment, and the temperature sensor should be thermally coupled to the device being measured.
  • The maximum allowed voltage on the analog input pins of the AD74413RBCPZ-RL7 is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device.
  • The AD74413RBCPZ-RL7 can be interfaced with a microcontroller using the SPI interface. The microcontroller should be configured as a SPI master, and the AD74413RBCPZ-RL7 should be configured as a SPI slave. The microcontroller should send the appropriate commands and data to the AD74413RBCPZ-RL7, and the AD74413RBCPZ-RL7 will respond with the converted data.
  • The AD74413RBCPZ-RL7 has a power-on reset (POR) circuit that resets the device to its default state when the power supply voltage rises above 1.5V. The POR circuit ensures that the device is in a known state after power-up.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD74413RBCPZ-RL7 Overview

Use the download button to access the AD74413RBCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD744, or try a keyword search, such as Other Signal Circuits
