AD744TH/883B - Analog Devices

Description: Precision, 500 ns Settling BiFET Op Amp

Download AD744TH/883B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

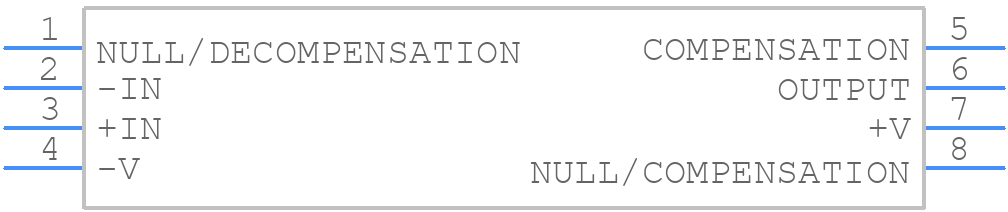

Symbol
AD744TH/883B - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD744TH/883B - Analog Devices PCB footprint - Other - Other - 8-Pin Metal Header Package [TO-99] (H-08)
click to zoom
3D Models
AD744TH/883B - Analog Devices - 3D model - Other - 8-Pin Metal Header Package [TO-99] (H-08)
click to zoom

AD744TH/883B Details

  • Manufacturer Part Number:

    AD744TH/883B

  • Source Url Status Check Date:

    2013-05-01 14:56:18.055

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TO-99

  • Package Description:

    TO-99, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    H-08-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00015 µA

  • Bias Current-Max (IIB) @25C:

    0.00015 µA

  • Common-mode Reject Ratio-Min:

    74 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    O-MBCY-W8

  • JESD-609 Code:

    e0

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    METAL

  • Package Code:

    BCY

  • Package Equivalence Code:

    CAN8,.2

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883 Class B

  • Slew Rate-Min:

    50 V/us

  • Slew Rate-Nom:

    75 V/us

  • Supply Current-Max:

    4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    WIRE

  • Terminal Position:

    BOTTOM

  • Unity Gain BW-Nom:

    13000

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

AD744TH/883B Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD744TH/883B involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a low-ESR capacitor for the power supply decoupling.
  • To ensure the AD744TH/883B operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. The device should be mounted on a thermally conductive material, and the thermal resistance between the device and the heat sink should be minimized.
  • Potential sources of noise in the AD744TH/883B include power supply noise, digital noise, and electromagnetic interference (EMI). These can be mitigated by using a low-noise power supply, separating analog and digital grounds, using shielding, and minimizing track lengths and loops on the PCB.
  • To troubleshoot issues with the AD744TH/883B, start by verifying the power supply voltage and ensuring it's within the specified range. Check the input and output voltages, and verify that the device is properly configured. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance.
  • The AD744TH/883B is a radiation-hardened device, designed to meet the requirements of MIL-PRF-38535. It's suitable for use in radiation-hardened applications, but it's essential to follow the recommended design and layout guidelines to ensure optimal performance and reliability in these environments.
