AD75019JP - Analog Devices

Description: Analog & Digital Crosspoint ICs 256 Analog Switches in 16x16 Array

Download AD75019JP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

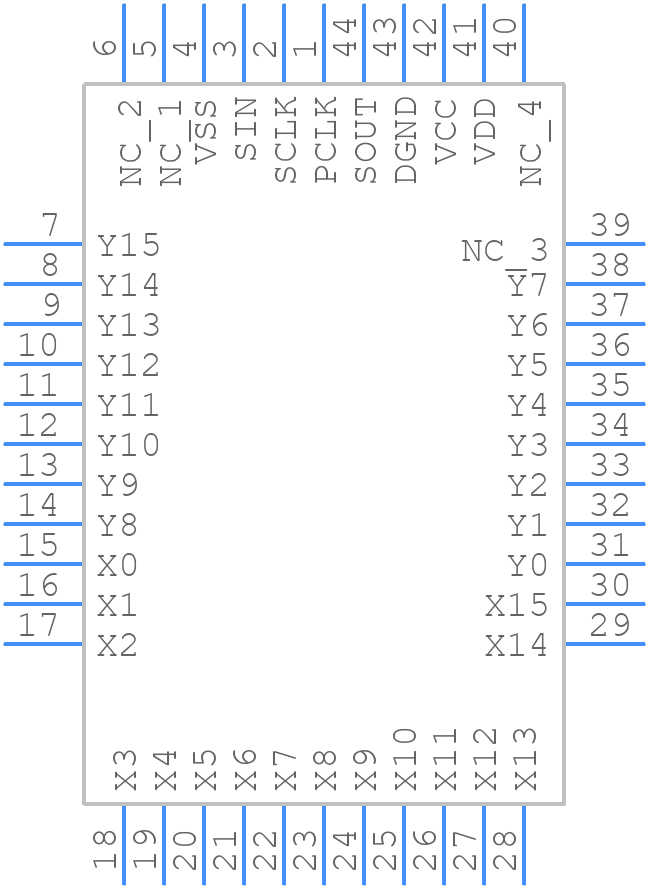

AD75019JP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD75019JP - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-44A(PLCC)
click to zoom

AD75019JP Details

  • Manufacturer Part Number:

    AD75019JP

  • Source Url Status Check Date:

    2013-05-01 14:56:18.524

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LCC

  • Package Description:

    LCC-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    P-44A

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PQCC-J44

  • JESD-609 Code:

    e0

  • Length:

    16.5862 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -25.2 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -12 V

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Off-state Isolation-Nom:

    92 dB

  • On-state Resistance Match-Nom:

    20 Ω

  • On-state Resistance-Max (Ron):

    300 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC44,.7SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max (Isup):

    0.8 mA

  • Supply Voltage-Max (Vsup):

    25.2 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    70 ns

  • Switch-on Time-Max:

    70 ns

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    16.5862 mm

AD75019JP Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD75019JP involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use shielding to reduce electromagnetic interference (EMI).
  • The AD75019JP's internal registers can be configured using the SPI interface. The device has several registers that control the conversion rate, resolution, and other parameters. Refer to the datasheet for the register map and configuration details. It's recommended to use the ADI's evaluation board and software development tools to simplify the configuration process.
  • The maximum clock frequency for the AD75019JP is 20 MHz. Increasing the clock frequency can improve the conversion rate, but it also increases the device's power consumption. The power consumption can be estimated using the formula provided in the datasheet, which takes into account the clock frequency, supply voltage, and other parameters.
  • The AD75019JP outputs 16-bit or 18-bit digital data, depending on the configuration. The output data is in two's complement format, and it's recommended to use a microcontroller or FPGA to handle the data and perform any necessary processing, such as scaling and filtering.
