AD7506KNZ - Analog Devices

Description: Analog Multiplexers

Download AD7506KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

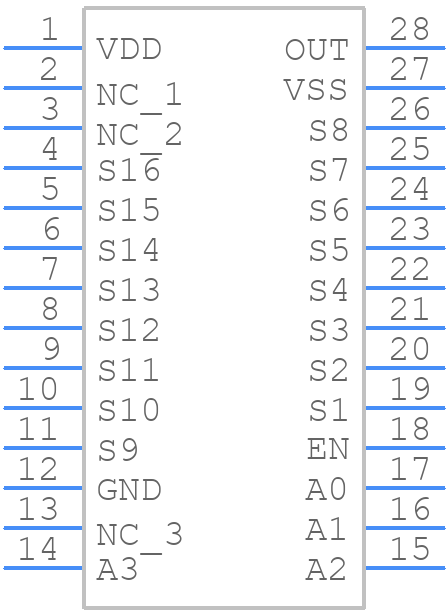

AD7506KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

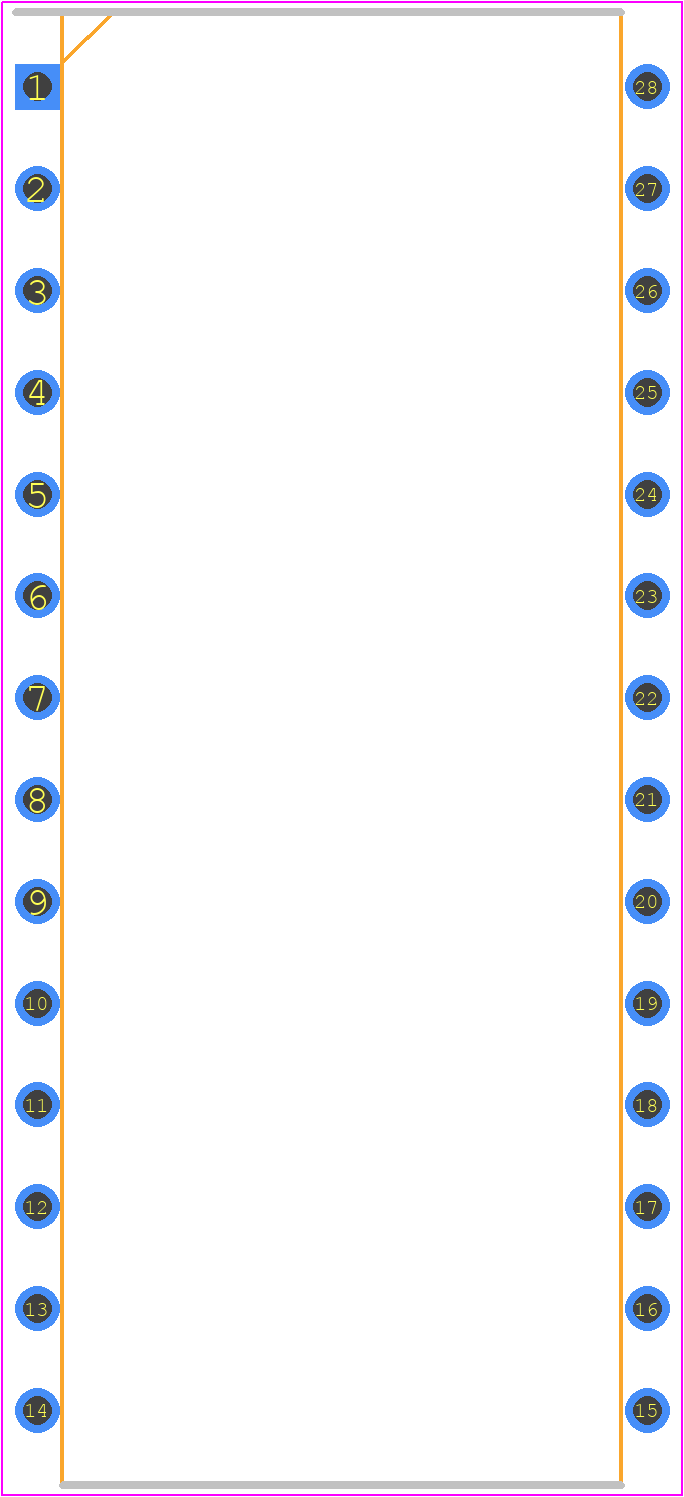

AD7506KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-Pin Plastic DIP (N)
click to zoom
3D Models
AD7506KNZ - Analog Devices - 3D model - Dual-In-Line Packages - 28-Pin Plastic DIP (N)
click to zoom

AD7506KNZ Details

  • Manufacturer Part Number:

    AD7506KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    N-28-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    37.4 mm

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    12 Ω

  • On-state Resistance-Max (Ron):

    450 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.35 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    1000 ns

  • Switch-on Time-Max:

    1500 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

AD7506KNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7506KNZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the AD7506KNZ close to the analog signal sources and to use shielding to reduce electromagnetic interference (EMI).
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain trim pins accordingly. It's also important to ensure that the AD7506KNZ is operated within its specified temperature range and that the input signals are within the recommended range.
  • The recommended power-up sequence for the AD7506KNZ is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or incorrect operation.
  • The AD7506KNZ has built-in overvoltage protection, but it's still recommended to add external protection circuitry, such as a voltage clamp or a transient voltage suppressor (TVS), to protect the device from excessive voltage spikes or surges.
  • The AD7506KNZ is a high-power device and requires proper thermal management to prevent overheating. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. The thermal resistance of the package should also be considered when designing the thermal management system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7506KNZ Overview

Use the download button to access the AD7506KNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD750, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
