AD7511DIKNZ - Analog Devices

AD7511DIKNZ Details

• Manufacturer Part Number:

  AD7511DIKNZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

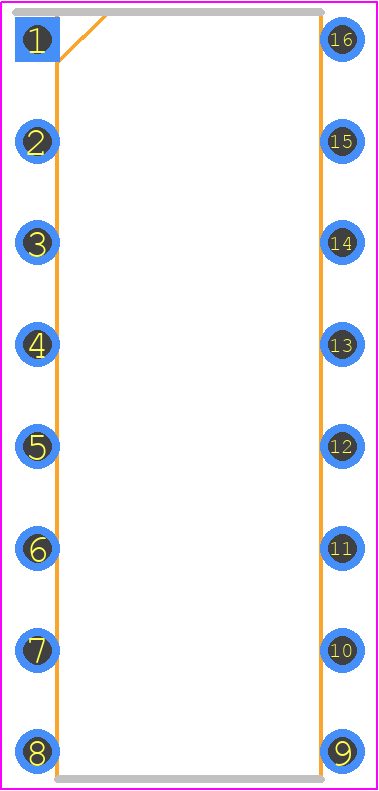

• Package Description:

  DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  N-16

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Additional Feature:

  OVERVOLTAGE PROTECTION

• Analog IC - Other Type:

  SPST

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  19.055 mm

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NC

• Number of Channels:

  1

• Number of Functions:

  4

• Number of Terminals:

  16

• On-state Resistance Match-Nom:

  1 Ω

• On-state Resistance-Max (Ron):

  100 Ω

• Operating Temperature-Max:

  70 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.32 mm

• Signal Current-Max:

  0.05 A

• Supply Current-Max (Isup):

  0.8 mA

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  1000 ns

• Switch-on Time-Max:

  1000 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
