AD7512DISQ footprint, schematic symbol and 3D model by Analog Devices

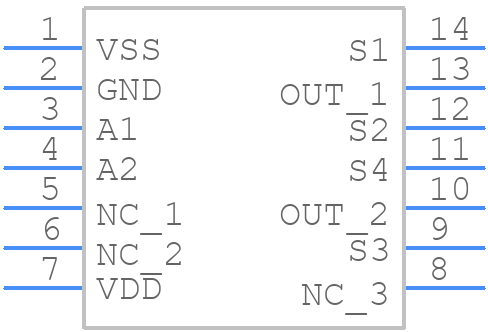

Symbol

click to zoom

PCB Footprints

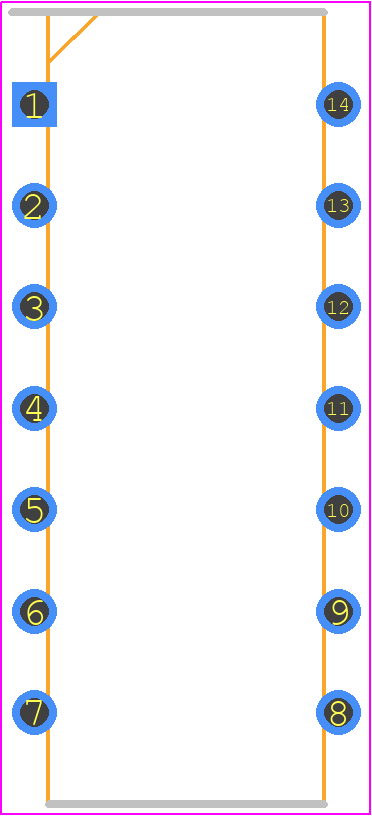

AD7512DISQ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - AD7512DISQ

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD7512DISQ
Part Number AD7512DISQ
Manufacturer Analog Devices
Pin Count 14
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - AD7512DISQ
Released Date Dec 31, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AD7512DISQ Details

Manufacturer Part Number:
AD7512DISQ
Source Url Status Check Date:
2013-05-01 14:56:18.68
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
Part Package Code:
DIP
Package Description:
HERMETIC SEALED, CERDIP-14
Pin Count:
14
HTS Code:
8542.39.00.60
Manufacturer:
Analog Devices Inc
YTEOL:
0
Additional Feature:
OVERVOLTAGE PROTECTION
Analog IC - Other Type:
SPDT
JESD-30 Code:
R-GDIP-T14
JESD-609 Code:
e0
Length:
19.43 mm
Neg Supply Voltage-Nom (Vsup):
-15 V
Number of Channels:
1
Number of Functions:
2
Number of Terminals:
14
On-state Resistance-Max (Ron):
100 Ω
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output:
SEPARATE OUTPUT
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP14,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Signal Current-Max:
0.05 A
Supply Current-Max (Isup):
0.8 mA
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Switch-off Time-Max:
1000 ns
Switch-on Time-Max:
1000 ns
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
TIN LEAD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

AD7512DISQ Frequently Asked Questions (FAQs)

A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
The AD7512DISQ requires a single 5V power supply. Ensure that the power supply is clean and regulated. Power sequencing is not critical, but it's recommended to power up the digital supply (DVCC) before the analog supply (AVCC) to prevent any potential latch-up conditions.
The AD7512DISQ can handle clock frequencies up to 20 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. It's recommended to use a clock signal with a rise and fall time of less than 5 ns.
The AD7512DISQ can be interfaced with a microcontroller using a standard SPI interface. The AD7512DISQ is a slave device and requires a master device (microcontroller) to initiate communication. The communication protocol is a standard SPI protocol with a clock polarity (CPOL) of 0 and a clock phase (CPHA) of 0.
The AD7512DISQ has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or a thermal pad. Keep the device away from heat sources, and ensure good airflow around the device. Operate the device within the recommended temperature range of -40°C to 125°C.

Trust Checks

Community Provided

System Verified

Community Approved

AD7512DISQ Overview

Use the download button to access the AD7512DISQ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD751, or try a keyword search, such as Multiplexers or Switches
