AD7521LN - Renesas Electronics

Description: Digital to Analog Converters - DAC

Download AD7521LN Model

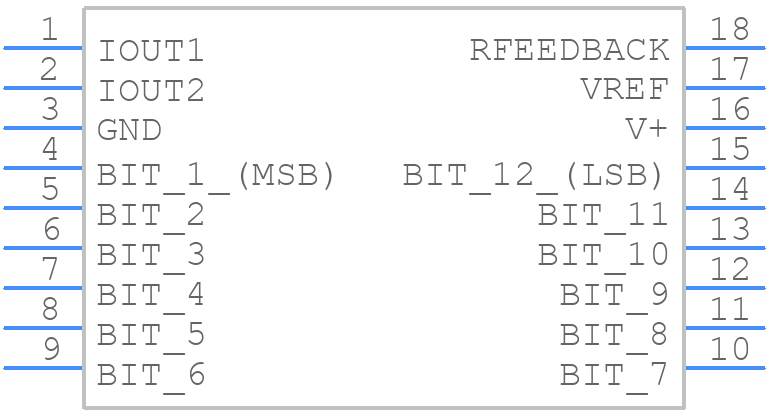

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD7521LN - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E18.3
click to zoom
3D Models
AD7521LN - Renesas Electronics  - 3D model - Dual-In-Line Packages - E18.3
click to zoom

AD7521LN Details

  • Manufacturer Part Number:

    AD7521LN

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-18

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T18

  • Length:

    21.91 mm

  • Linearity Error-Max (EL):

    0.05%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.935 mm

AD7521LN Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7521LN involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, it is recommended to use a ground plane and to route the analog and digital signals on separate layers to minimize noise and crosstalk.
  • To ensure proper powering and decoupling of the AD7521LN, it is recommended to use a low-impedance power supply, decouple the power pins with 0.1 μF and 10 μF capacitors, and use a 10 kΩ to 100 kΩ resistor in series with the power supply to prevent voltage spikes. Additionally, it is recommended to use a separate analog and digital power supply if possible.
  • The maximum clock frequency that can be used with the AD7521LN is 10 MHz. However, it is recommended to use a clock frequency of 5 MHz or less to ensure optimal performance and to prevent clock jitter and noise.
  • The AD7521LN can be programmed to output a specific voltage or current by writing the desired value to the device's registers using the serial interface. The device's datasheet provides a detailed description of the register format and the programming sequence required to set the output voltage or current.
  • The typical settling time of the AD7521LN is 10 μs to 20 μs, depending on the output voltage or current and the load capacitance. The settling time can affect the system's overall performance by introducing latency and limiting the maximum data conversion rate. It is recommended to consider the settling time when designing the system's timing and synchronization.
