AD7524JNZ - Analog Devices

Description: AD7524JNZ, 8 bit-Bit DAC 4Msps, Parallel, 16-Pin PDIP

Download AD7524JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

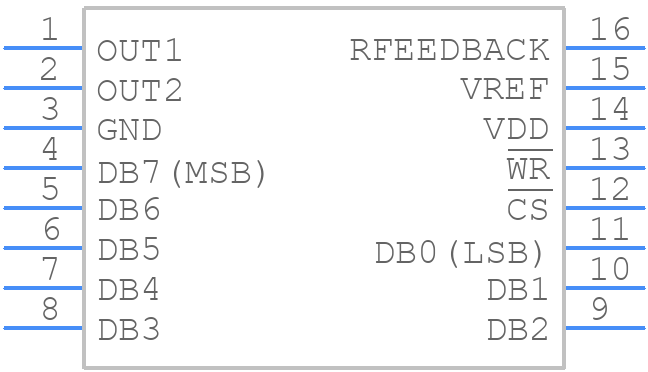

AD7524JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

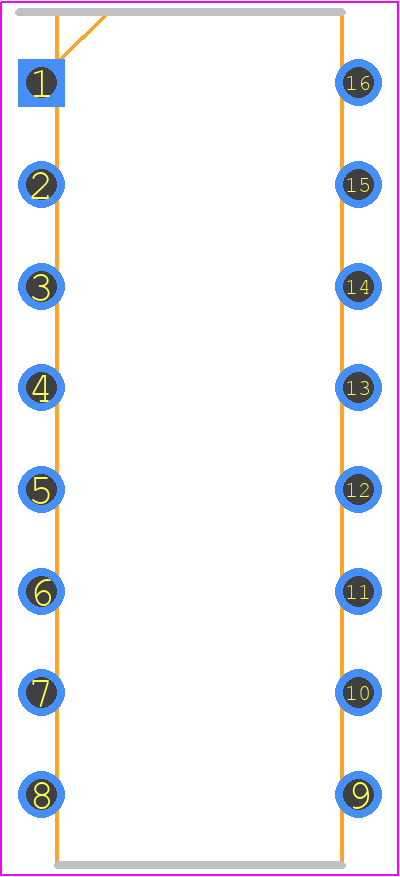

AD7524JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Pin Plastic DIP
click to zoom
3D Models
AD7524JNZ - Analog Devices - 3D model - Dual-In-Line Packages - 16-Pin Plastic DIP
click to zoom

AD7524JNZ Details

  • Manufacturer Part Number:

    AD7524JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7524JNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7524JNZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and a dedicated digital ground plane.
  • The AD7524JNZ requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power supply, and to sequence the power-on in the following order: AVDD, DVDD, and then the digital inputs. The power-down sequence should be reversed.
  • The AD7524JNZ can operate with a clock frequency up to 50 MHz. A high-quality clock signal with low jitter (<100 ps) and a stable frequency is recommended. A clock signal with a 50% duty cycle is preferred, but the device can tolerate a duty cycle between 40% and 60%.
  • To optimize the performance of the AD7524JNZ, it's recommended to use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency sources. Additionally, a good grounding practice, such as using a solid ground plane, can help reduce noise and EMI susceptibility.
  • The analog input of the AD7524JNZ should be driven with a low-impedance source, such as an op-amp output. The input signal should be within the specified voltage range (0 to VREF) and should not exceed the maximum input current (±10 mA). A series resistor (e.g., 1 kΩ) can be used to limit the input current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7524JNZ Overview

Use the download button to access the AD7524JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD752, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
