AD7524JRZ-REEL - Analog Devices

Description: CMOS 8-Bit Buffered Multiplying DAC

Download AD7524JRZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

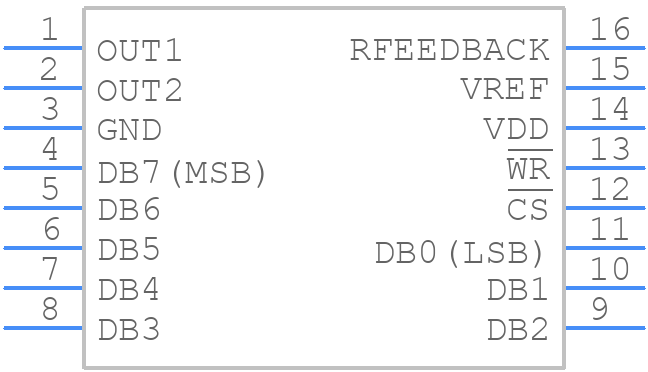

AD7524JRZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7524JRZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16A (SOIC)
click to zoom
3D Models
AD7524JRZ-REEL - Analog Devices - 3D model - Small Outline Packages - R-16A (SOIC)
click to zoom

AD7524JRZ-REEL Details

  • Manufacturer Part Number:

    AD7524JRZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    0.5 µs

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7524JRZ-REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, use a low-ESR capacitor for decoupling and place it close to the device.
  • The AD7524JRZ-REEL requires a single 2.7V to 5.5V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it is recommended to power up the device in the following order: AVDD, DVDD, and then the digital inputs.
  • The maximum clock frequency for the AD7524JRZ-REEL is 50 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. The clock signal should also be synchronized with the data signal.
  • The AD7524JRZ-REEL has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use a heat sink if necessary. Avoid touching the device or exposing it to extreme temperatures during handling or storage.
  • The AD7524JRZ-REEL has built-in ESD protection, but it is still recommended to handle the device with care. Use an anti-static wrist strap or mat, and avoid touching the device's pins or exposed internal components.
