AD7524JRZ - Analog Devices

Description: AD7524JRZ, 8-Bit 8 Bit DAC 4Msps, Parallel, 16-Pin SOIC

Download AD7524JRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

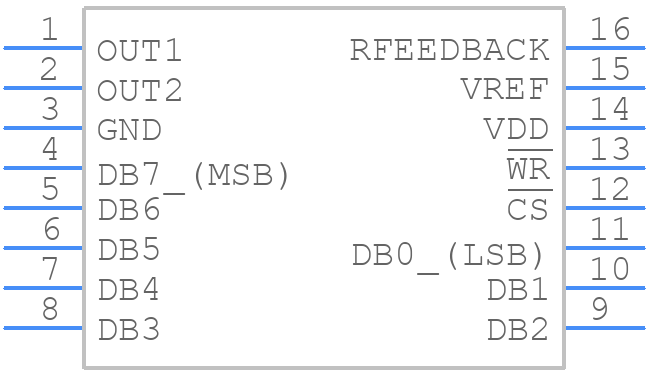

AD7524JRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7524JRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 lead soic
click to zoom
3D Models
AD7524JRZ - Analog Devices - 3D model - Small Outline Packages - 16 lead soic
click to zoom

AD7524JRZ Details

  • Manufacturer Part Number:

    AD7524JRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7524JRZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC before applying the analog input voltage. This ensures that the internal biasing and reference circuits are properly initialized.
  • To ensure accurate voltage output, it is essential to decouple the power supply pins (VCC and GND) with a 10uF capacitor, and to use a low-impedance power supply. Additionally, the analog input voltage should be within the specified range, and the output should be buffered with an op-amp if necessary.
  • The maximum output current of the AD7524JRZ is 10mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • To minimize noise and ripple, use a low-pass filter (e.g., an RC filter) at the output, and ensure that the power supply is well-regulated and low-noise. Additionally, use a ground plane and keep the layout compact to reduce electromagnetic interference (EMI).
  • The AD7524JRZ is specified to operate from -40°C to +125°C. However, the device's accuracy and linearity may degrade at high temperatures. It is essential to consult the datasheet and perform thorough testing to ensure the device meets the required specifications in the target application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7524JRZ Overview

Use the download button to access the AD7524JRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD752, or try a keyword search, such as Digital to Analog Converters
