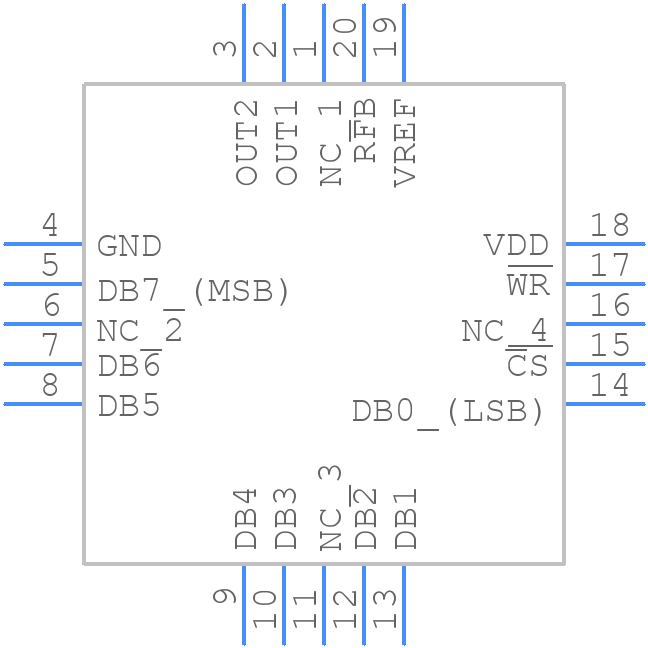

Symbol
AD7524KPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7524KPZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-20A
click to zoom
3D Models
AD7524KPZ - Analog Devices - 3D model - Plastic Leaded Chip Carrier - P-20A
click to zoom

AD7524KPZ Details

  • Manufacturer Part Number:

    AD7524KPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    P-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    S-PQCC-J20

  • JESD-609 Code:

    e3

  • Length:

    8.9662 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC20,.4SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8.9662 mm

AD7524KPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VLOGIC, and then the digital inputs. This ensures that the internal logic is powered up before the analog circuitry, preventing any potential latch-up or damage to the device.
  • To ensure accurate DAC output voltage levels, it is essential to decouple the VREF pin to GND with a 10uF capacitor, and also decouple the VCC pin to GND with a 10uF capacitor. Additionally, use a low-impedance voltage source for VREF, and ensure that the output load impedance is greater than 5kΩ.
  • The maximum clock frequency that can be used with the AD7524KPZ is 50MHz. However, it is recommended to limit the clock frequency to 20MHz or less to ensure reliable operation and minimize digital noise.
  • During power-up, the LDAC pin should be held low until the device is fully powered up and the digital inputs are stable. During power-down, the LDAC pin should be held high to ensure that the DAC output is in a high-impedance state, preventing any potential damage to the device or the load.
  • The recommended layout and routing for the AD7524KPZ involves keeping the analog and digital signal paths separate, using a solid ground plane, and minimizing the length of the traces connected to the VREF and DAC output pins. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground layer.
