AD7528JRZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC CMOS 8-Bit Buffered Multiplying

Download AD7528JRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

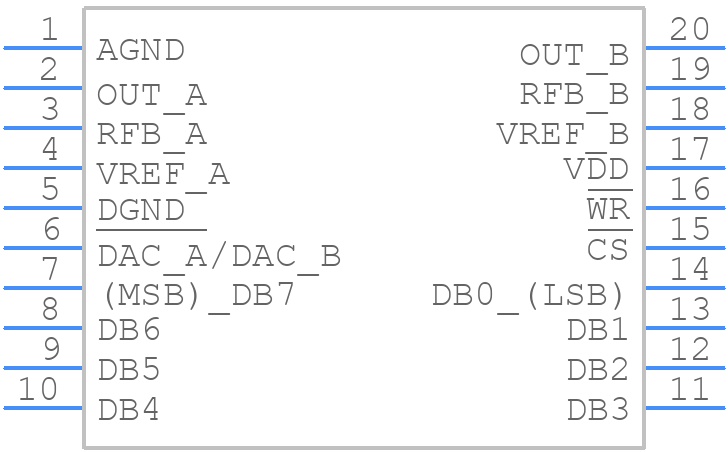

AD7528JRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7528JRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-20 (SOIC)
click to zoom
3D Models
AD7528JRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-20 (SOIC)
click to zoom

AD7528JRZ-REEL7 Details

  • Manufacturer Part Number:

    AD7528JRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    0.4 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7528JRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7528JRZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
  • To ensure the accuracy of the DAC output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR452, and to minimize the noise on the VREF pin. Additionally, the output voltage should be buffered with an op-amp, such as the OP184, to prevent loading effects.
  • The maximum clock frequency that can be used with the AD7528JRZ-REEL7 is 50 MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
  • The AD7528JRZ-REEL7 has a built-in power-on reset (POR) circuit that resets the device when the power supply voltage is below a certain threshold. To handle the POR, it's recommended to use a power supply with a slow rise time (e.g., 10 ms) and to add a capacitor (e.g., 10 nF) between the VCC pin and ground to filter out noise.
  • The recommended method for programming the AD7528JRZ-REEL7 is to use a serial interface, such as SPI or I2C, to write data to the device. The device can also be programmed using a parallel interface, but this method is not recommended due to the complexity of the interface.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7528JRZ-REEL7 Overview

Use the download button to access the AD7528JRZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD752, or try a keyword search, such as Digital to Analog Converters
