AD7528KPZ - Analog Devices

Description: ANALOG DEVICES - AD7528KPZ - Digital to Analogue Converter, Dual, 8 bit, 5.6 MSPS, Parallel, 5V to 15V, PLCC, 20 Pins

Download AD7528KPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

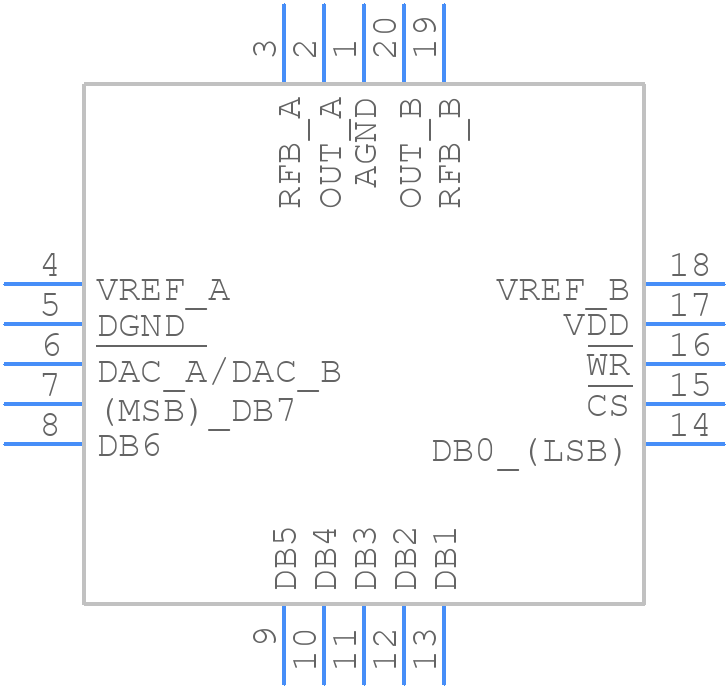

AD7528KPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7528KPZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-20A
click to zoom
3D Models
AD7528KPZ - Analog Devices - 3D model - Plastic Leaded Chip Carrier - P-20A
click to zoom

AD7528KPZ Details

  • Manufacturer Part Number:

    AD7528KPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    P-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    S-PQCC-J20

  • JESD-609 Code:

    e3

  • Length:

    8.965 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC20,.4SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    8.965 mm

AD7528KPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7528KPZ involves separating analog and digital signals, using a solid ground plane, and keeping the analog input and output traces as short as possible. Additionally, it's recommended to use a low-ESR capacitor for the VREF pin and to decouple the power supplies with a 10uF capacitor.
  • To ensure accurate voltage output from the AD7528KPZ, it's essential to consider the temperature coefficient of the reference voltage (VREF) and the output voltage. Use a high-precision voltage reference, and consider using a temperature-compensated voltage reference. Additionally, ensure that the output voltage is within the specified operating range, and consider using a voltage buffer or amplifier if necessary.
  • The AD7528KPZ can supply up to 10mA of output current. However, the output voltage accuracy may be affected if the output current exceeds 5mA. To ensure optimal performance, it's recommended to keep the output current below 5mA and use a voltage buffer or amplifier if higher currents are required.
  • The AD7528KPZ can be programmed using a 3-wire serial interface. The output voltage is determined by the 8-bit digital code loaded into the device. The resolution of the output voltage is 3mV, and the output voltage range is 0V to VREF.
  • The AD7528KPZ has a power-on reset feature that sets the output voltage to 0V during power-up. This ensures that the output voltage is in a known state during power-up. The power-on reset time is typically around 10ms, and the output voltage will remain at 0V until the device is fully powered up and the output voltage is programmed.
