- Part Number AD7528LR-REEL
- Manufacturer Analog Devices
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 20-Lead SOIC (R-20)
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7528LR-REEL Details
-
Manufacturer Part Number:
AD7528LR-REEL
-
Source Url Status Check Date:
2013-05-01 14:56:18.756
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-20
-
Pin Count:
20
-
Manufacturer Package Code:
RW-20
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Analog Devices Inc
AD7528LR-REEL Frequently Asked Questions (FAQs)
-
The recommended layout and routing for the AD7528LR-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the digital input lines. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer, and to keep the analog signals away from the digital signals.
-
To ensure proper powering and decoupling of the AD7528LR-REEL, it's recommended to use a low impedance power supply, decouple the power pins with 0.1uF and 10uF capacitors, and add a 10uF capacitor between the VCC and GND pins. Additionally, it's recommended to use a separate analog power supply for the AD7528LR-REEL if it's not possible to use a low noise digital power supply.
-
The maximum clock frequency that can be used with the AD7528LR-REEL is 50MHz. However, it's recommended to use a clock frequency of 20MHz or less to ensure optimal performance and minimize noise.
-
The AD7528LR-REEL can be programmed to output a specific voltage or current using the SPI interface. The device has a 16-bit register that can be written to set the output voltage or current. The output voltage or current can be calculated using the formula provided in the datasheet, and the corresponding register value can be written to the device using the SPI interface.
-
The typical settling time of the AD7528LR-REEL is 10us. However, this can vary depending on the output voltage or current, and the load capacitance. It's recommended to consult the datasheet for more information on the settling time and to perform characterization tests to determine the settling time for a specific application.
Trust Checks
Community Provided
System Verified
Community Approved
AD7528LR-REEL Overview

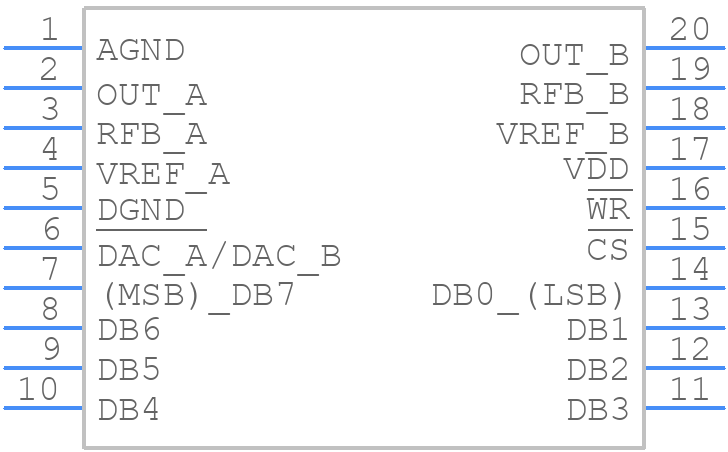

Use the download button to access the AD7528LR-REEL schematic symbol, PCB footprint, and 3D model.
