AD7528LRZ-REEL - Analog Devices

Description: DAC

Download AD7528LRZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

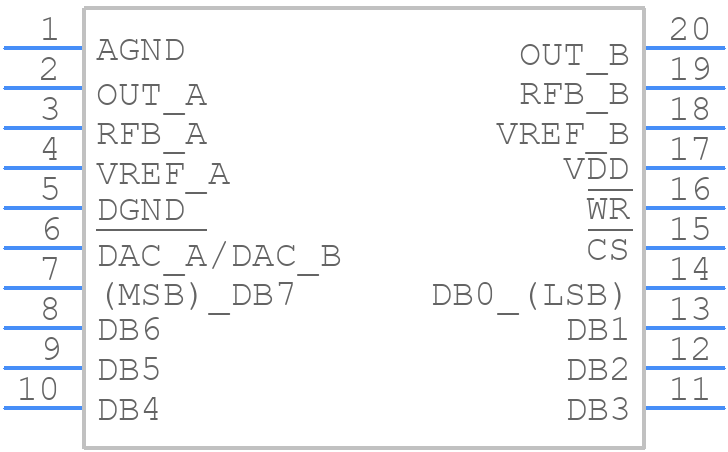

AD7528LRZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7528LRZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-20 (SOIC)
click to zoom
3D Models
AD7528LRZ-REEL - Analog Devices - 3D model - Small Outline Packages - R-20 (SOIC)
click to zoom

AD7528LRZ-REEL Details

  • Manufacturer Part Number:

    AD7528LRZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7528LRZ-REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a layout and routing guide in the AD7528 evaluation board documentation, which can be used as a reference. Additionally, it is recommended to follow general PCB design best practices, such as separating analog and digital signals, using ground planes, and minimizing trace lengths.
  • The AD7528LRZ-REEL requires a single 5V power supply, and it is recommended to use a low-noise, low-dropout regulator. Decoupling capacitors should be placed close to the device, with a 10uF capacitor in parallel with a 100nF capacitor. Additionally, a 1uF capacitor should be placed between the VCC and GND pins.
  • The AD7528LRZ-REEL can operate with clock frequencies up to 50MHz, but the maximum frequency may be limited by the specific application and system requirements. It is recommended to consult the datasheet and application notes for more information.
  • The AD7528LRZ-REEL is a 256-position, 8-bit digital-to-analog converter. To program the device, the user must send a 8-bit digital code to the device, which corresponds to the desired output voltage or current. The output voltage or current can be calculated using the formula provided in the datasheet.
  • The typical settling time of the AD7528LRZ-REEL is 10us, but this can vary depending on the specific application and system requirements. It is recommended to consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7528LRZ-REEL Overview

Use the download button to access the AD7528LRZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD752, or try a keyword search, such as Digital to Analog Converters
