AD7533JNZ - Analog Devices

Description: AD7533JNZ, 10 bit-Bit DAC 1.7Msps, Parallel, 16-Pin PDIP

Download AD7533JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

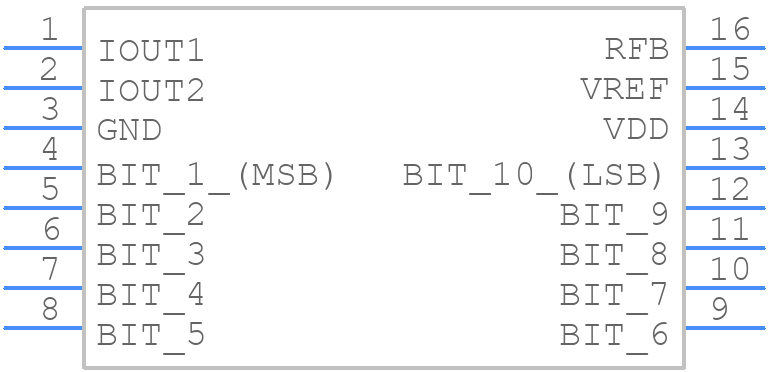

AD7533JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7533JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16
click to zoom
3D Models
AD7533JNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16
click to zoom

AD7533JNZ Details

  • Manufacturer Part Number:

    AD7533JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Linearity Error-Max (EL):

    0.2%

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.32 mm

  • Settling Time-Max:

    1 µs

  • Settling Time-Nom (tstl):

    0.8 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7533JNZ Frequently Asked Questions (FAQs)

  • It is recommended to place the AD7533JNZ close to the analog-to-digital converter (ADC) and use a ground plane to minimize noise. Additionally, keep the analog and digital grounds separate and use a single-point ground connection to reduce noise coupling.
  • To ensure accurate temperature measurement, calibrate the AD7533JNZ using a thermocouple simulator or a precision temperature source. Also, ensure proper thermal coupling between the thermocouple and the AD7533JNZ, and use a low-noise, low-thermal-resistance thermocouple.
  • The maximum cable length for the thermocouple connection to the AD7533JNZ depends on the type of thermocouple and the noise environment. As a general guideline, keep the cable length as short as possible (less than 1 meter) to minimize noise pickup and ensure accurate measurements.
  • While the AD7533JNZ is optimized for use with K-type thermocouples, it can be used with other thermocouple types with some limitations. Consult the datasheet and application notes for guidance on using non-standard thermocouples, and be prepared to perform additional calibration and compensation.
  • The AD7533JNZ has built-in cold junction compensation, but it may require additional calibration and compensation depending on the specific application. Consult the datasheet and application notes for guidance on cold junction compensation and calibration procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7533JNZ Overview

Use the download button to access the AD7533JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD753, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
