AD7533JPZ - Analog Devices

Description: AD7533JPZ, 10 bit-Bit DAC 1.7Msps, Parallel, 20-Pin PLCC

Download AD7533JPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

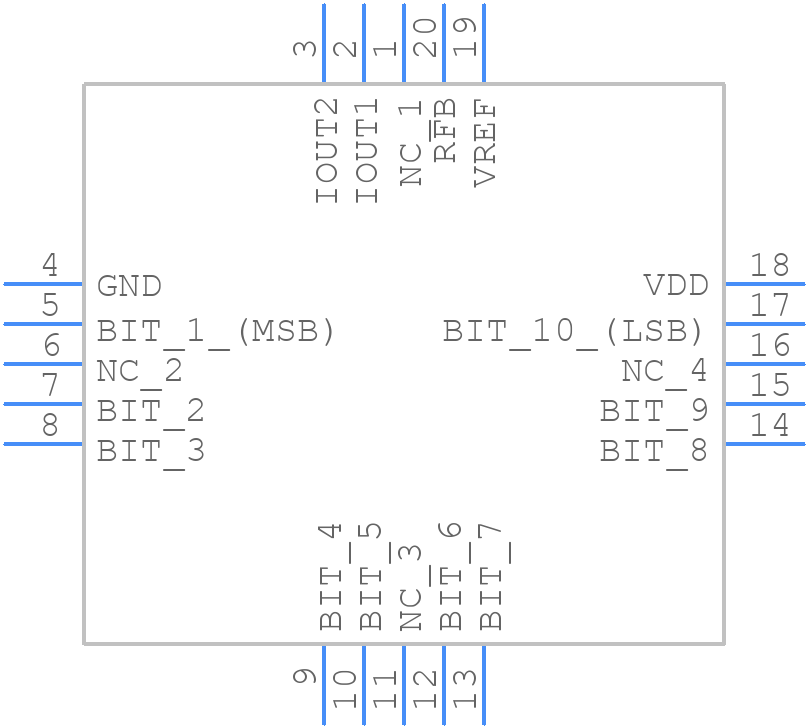

Symbol
AD7533JPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7533JPZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-20A(PLCC)_3
click to zoom
3D Models
AD7533JPZ - Analog Devices - 3D model - Plastic Leaded Chip Carrier - P-20A(PLCC)_3
click to zoom

AD7533JPZ Details

  • Manufacturer Part Number:

    AD7533JPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LPCC

  • Package Description:

    LCC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    P-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQCC-J20

  • JESD-609 Code:

    e3

  • Length:

    8.965 mm

  • Linearity Error-Max (EL):

    0.2%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC20,.4SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Settling Time-Max:

    1 µs

  • Settling Time-Nom (tstl):

    0.8 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    8.965 mm

AD7533JPZ Frequently Asked Questions (FAQs)

  • The AD7533JPZ is a high-speed, high-precision device, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the guidelines provided in the datasheet, including keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and to follow good high-speed design practices.
  • The AD7533JPZ requires calibration and configuration to ensure optimal performance. It is recommended to follow the calibration procedure outlined in the datasheet, which includes setting the internal reference voltage, calibrating the analog-to-digital converter (ADC), and configuring the device for the desired operating mode. Additionally, it is recommended to consult the application notes and technical documentation provided by Analog Devices Inc for specific guidance on calibration and configuration for your application.
  • The AD7533JPZ is a high-power device that requires careful thermal management to ensure reliable operation. It is recommended to follow the thermal guidelines provided in the datasheet, including keeping the device away from heat sources, using a heat sink if necessary, and ensuring good airflow around the device. Additionally, it is recommended to monitor the device temperature and adjust the operating conditions accordingly to prevent overheating.
  • The AD7533JPZ has a digital interface that can be connected to a microcontroller or DSP. It is recommended to follow the interface guidelines provided in the datasheet, including using a compatible interface protocol (such as SPI or I2C), ensuring proper signal termination, and using a compatible voltage level translator if necessary. Additionally, it is recommended to consult the application notes and technical documentation provided by Analog Devices Inc for specific guidance on interfacing the AD7533JPZ with your specific microcontroller or DSP.
  • The AD7533JPZ is a high-frequency device that requires careful consideration of electromagnetic compatibility (EMC) to ensure reliable operation and compliance with relevant standards. It is recommended to follow the EMC guidelines provided in the datasheet, including using a shielded enclosure, minimizing radiated emissions, and ensuring proper filtering and decoupling of the power supply. Additionally, it is recommended to consult the application notes and technical documentation provided by Analog Devices Inc for specific guidance on EMC considerations for your application.
