AD7533KRZ - Analog Devices

Description: Analog Devices AD7533KRZ, 10 bit Parallel DAC, 16-Pin SOIC W

Download AD7533KRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

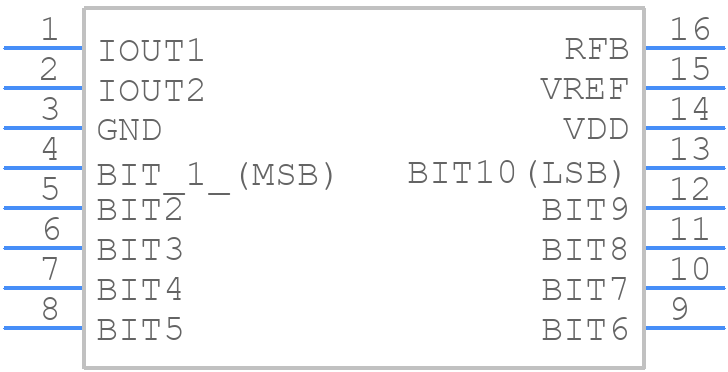

Symbol
AD7533KRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7533KRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16
click to zoom
3D Models
AD7533KRZ - Analog Devices - 3D model - Small Outline Packages - RW-16
click to zoom

AD7533KRZ Details

  • Manufacturer Part Number:

    AD7533KRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.1%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    1 µs

  • Settling Time-Nom (tstl):

    0.8 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7533KRZ Frequently Asked Questions (FAQs)

  • The AD7533KRZ is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals under the device.
  • To ensure accurate temperature measurement, it is essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, it is recommended to use a thermocouple or a thermistor with a high accuracy and a low thermal time constant.
  • The recommended power-up sequence for the AD7533KRZ is to power up the analog supply (VCC) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent digital noise from affecting the analog signals.
  • To minimize noise and interference, it is recommended to use a low-noise power supply, decouple the power supplies with capacitors, and use a shielded cable for the analog signals. Additionally, it is recommended to use a ground plane and to keep the analog and digital signals separate.
  • The maximum clock frequency for the AD7533KRZ is 1 MHz. However, the recommended clock frequency is 100 kHz to 500 kHz for optimal performance.
