AD7534JNZ - Analog Devices

Description: AD7534JNZ, 14 bit-Bit DAC 667ksps, Parallel, 20-Pin PDIP

Download AD7534JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

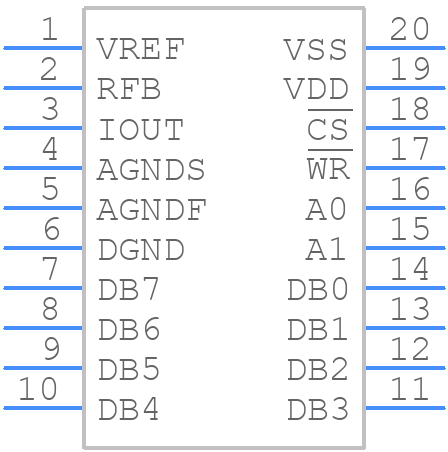

AD7534JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7534JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-20-ren1
click to zoom
3D Models
AD7534JNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-20-ren1
click to zoom

AD7534JNZ Details

  • Manufacturer Part Number:

    AD7534JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    N-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    25.2 mm

  • Linearity Error-Max (EL):

    0.012%

  • Negative Supply Voltage-Nom:

    -0.3 V

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    1.5 µs

  • Supply Current-Max:

    3 mA

  • Surface Mount:

    NO

  • Technology:

    MOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7534JNZ Frequently Asked Questions (FAQs)

  • It is recommended to place the AD7534JNZ close to the analog signal sources, use a solid ground plane, and keep the analog and digital grounds separate. Additionally, use short and direct traces for the analog signals, and avoid running digital signals near the analog signals.
  • The AD7534JNZ has an internal calibration circuit that can be enabled by applying a specific voltage to the CAL pin. Refer to the datasheet for the calibration procedure, and ensure that the calibration voltage is within the specified range.
  • The AD7534JNZ can achieve a maximum sampling rate of 100 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and other system-level factors.
  • The AD7534JNZ has a built-in POR and BOR circuitry that resets the device during power-up or brown-out conditions. Ensure that the power supply is stable and within the recommended voltage range to prevent unwanted resets.
  • Use a combination of ceramic and electrolytic capacitors to decouple the power supply, and add a ferrite bead or a pi-filter to filter out high-frequency noise. Ensure that the power supply is well-regulated and within the recommended voltage range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7534JNZ Overview

Use the download button to access the AD7534JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD753, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
