AD7537JNZ - Analog Devices

Description: AD7537JNZ, 12 bit-Bit DAC Dual, 667ksps, Parallel, 24-Pin PDIP

Download AD7537JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

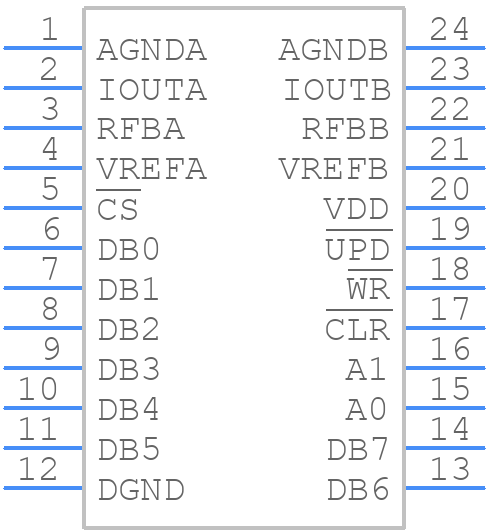

AD7537JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7537JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7537JNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7537JNZ Details

  • Manufacturer Part Number:

    AD7537JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, SKINNY, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.48 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    0.8 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7537JNZ Frequently Asked Questions (FAQs)

  • It is recommended to place the AD7537JNZ close to the analog-to-digital converter (ADC) and use a ground plane to minimize noise. Additionally, keep the analog and digital grounds separate and use a ferrite bead or inductor to filter the power supply.
  • To ensure accurate temperature measurement, calibrate the AD7537JNZ using a thermocouple or other temperature reference. Also, ensure good thermal contact between the device and the heat source, and use a low-noise, low-impedance connection to the ADC.
  • The maximum cable length for the AD7537JNZ's analog output is typically around 10 feet (3 meters). If a longer cable is needed, consider using a buffer amplifier or a repeater to boost the signal and maintain signal integrity.
  • While the AD7537JNZ is specified for a 5V power supply, it can operate with a power supply voltage between 4.5V and 5.5V. However, be aware that the device's performance, accuracy, and temperature range may be affected by deviations from the recommended power supply voltage.
  • To minimize EMI and RFI, use a shielded cable for the analog output, keep the device away from high-frequency sources, and use a ferrite bead or common-mode choke to filter the power supply. Additionally, consider using a metal enclosure or shielded box to house the device.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD7537JNZ Overview

Use the download button to access the AD7537JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD753, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
