Technical Content
Part Image

AD7538KNZ - Analog Devices

Description: AD7538KNZ, 14 bit-Bit DAC 667ksps, Parallel, 24-Pin PDIP

Download AD7538KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

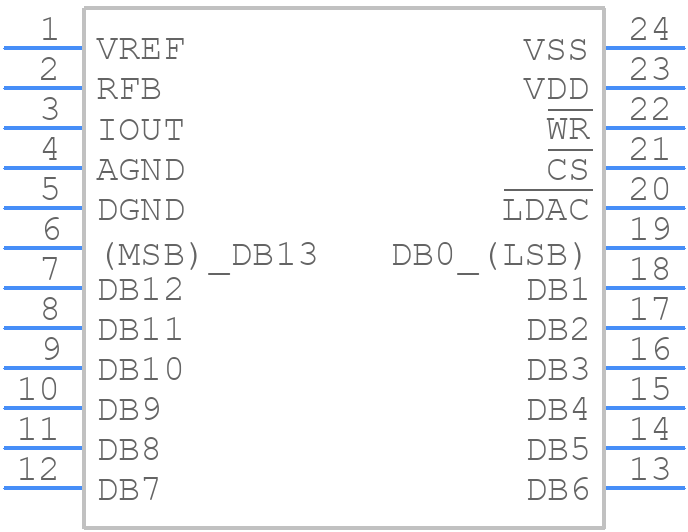

AD7538KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7538KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7538KNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7538KNZ Details

  • Manufacturer Part Number:

    AD7538KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.48 mm

  • Linearity Error-Max (EL):

    0.006%

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    0.8 µs

  • Supply Current-Max:

    4 mA

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7538KNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the sensitive analog signals away from the digital signals. Also, use a solid ground plane and avoid vias under the device to reduce noise and radiation.
  • Consult the datasheet and application notes for specific configuration guidelines. Also, use Analog Devices' evaluation boards and software tools, such as the AD7538KNZ Evaluation Board and the ADI's Sigma-Delta ADC Evaluation Tool, to help with configuration and testing.
  • Choose components with low noise, high accuracy, and suitable temperature coefficients. For capacitors, use low-ESR, high-frequency capacitors (e.g., ceramic or film capacitors) and ensure they are rated for the operating voltage. For resistors, use low-noise, high-precision resistors with a low temperature coefficient.
  • Follow the calibration procedure outlined in the datasheet, which typically involves a full-scale calibration and a zero-scale calibration. Also, consider using an external calibration voltage source and ensure the calibration signals are clean and noise-free.
  • Common pitfalls include incorrect pin connections, inadequate power supply decoupling, and poor layout and routing. To troubleshoot, use a systematic approach, checking the power supply, clock signals, and data lines. Also, consult the datasheet, application notes, and online forums for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7538KNZ Overview

Use the download button to access the AD7538KNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD753, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
