AD7542JNZ - Analog Devices

Description: AD7542JNZ, 12 bit-Bit DAC Parallel, 16-Pin PDIP

Download AD7542JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

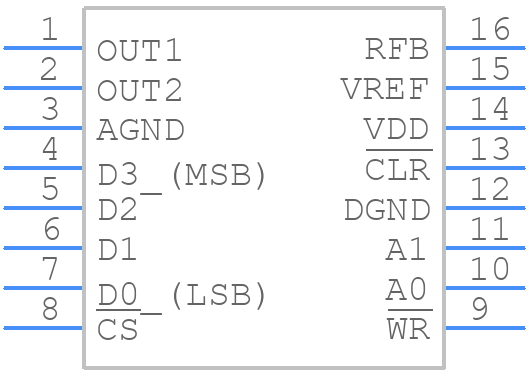

AD7542JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

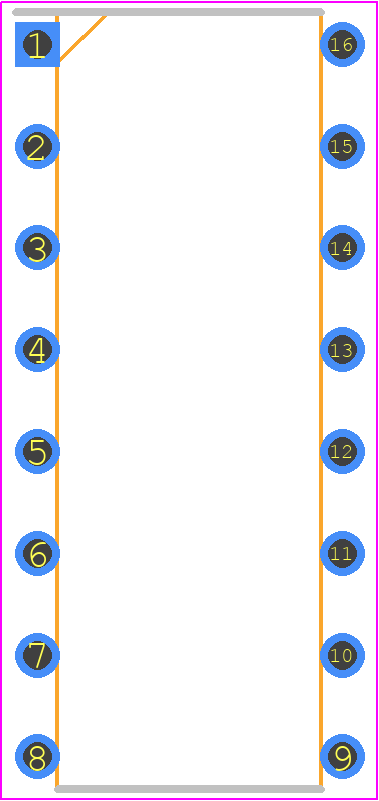

AD7542JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16_4.32
click to zoom
3D Models
AD7542JNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16_4.32
click to zoom

AD7542JNZ Details

  • Manufacturer Part Number:

    AD7542JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, 4 BITS

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    0.25 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7542JNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and direct. Additionally, place the AD7542JNZ close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) to minimize noise and ensure optimal performance.
  • The internal voltage reference of the AD7542JNZ can be used, but it's recommended to use an external voltage reference for better accuracy and stability. When using an external reference, ensure it's a low-noise, low-drift reference, and follow the datasheet's guidelines for connecting it to the AD7542JNZ.
  • The maximum clock frequency for the AD7542JNZ is 40 MHz. Exceeding this frequency can lead to incorrect data conversion, increased noise, and reduced accuracy. Ensure the clock frequency is within the recommended range to maintain optimal performance.
  • The AD7542JNZ has a built-in POR and BOR circuitry. Ensure that the power supply is stable and within the recommended range to avoid false resets. Also, use a capacitor on the VCC pin to filter out noise and ensure a clean power-on reset.
  • Use a synchronous serial interface (SSI) or a serial peripheral interface (SPI) to interface the AD7542JNZ with a microcontroller or FPGA. Ensure the interface is properly configured, and the clock and data lines are properly terminated to minimize noise and ensure reliable data transfer.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7542JNZ Overview

Use the download button to access the AD7542JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD754, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
