AD7543KNZ - Analog Devices

Description: AD7543KNZ, 12 bit-Bit DAC Serial, 16-Pin PDIP

Download AD7543KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

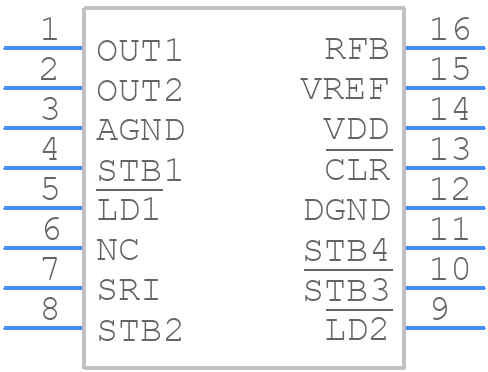

AD7543KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

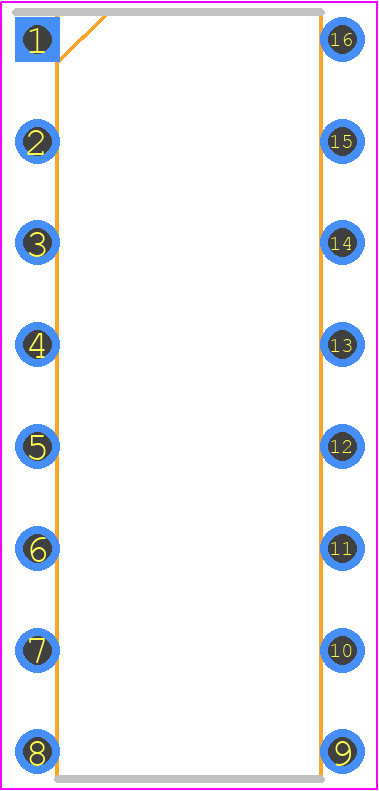

AD7543KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-LEAD PDIP
click to zoom
3D Models
AD7543KNZ - Analog Devices - 3D model - Dual-In-Line Packages - 16-LEAD PDIP
click to zoom

AD7543KNZ Details

  • Manufacturer Part Number:

    AD7543KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Linearity Error-Max (EL):

    0.012%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    2 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7543KNZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures proper device operation and prevents latch-up.
  • When using the AD7543KNZ as a unipolar DAC, the output voltage swing can be adjusted by connecting a resistor (RFB) between the output (VOUT) and the reference input (VREF). This allows the output voltage to swing from 0V to VREF.
  • The SYNC input pin is used to synchronize the conversion process with an external clock signal. When SYNC is high, the DAC enters a high-impedance state, and when SYNC is low, the DAC updates its output. This allows for simultaneous updating of multiple DACs.
  • To minimize noise and ensure accurate conversions, use a low-noise power supply, decouple the power pins with capacitors, and use a quiet reference voltage source. Additionally, consider using a shielded cable and a low-capacitance layout to reduce noise coupling.
  • The AD7543KNZ can sink or source up to 10mA of output current. However, it's recommended to limit the output current to 5mA or less to ensure accurate conversions and prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7543KNZ Overview

Use the download button to access the AD7543KNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD754, or try a keyword search, such as Digital to Analog Converters
