AD7547LNZ - Analog Devices

Description: AD7547LNZ, 12 bit-Bit DAC Dual, 667ksps, Parallel, 24-Pin PDIP

Download AD7547LNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

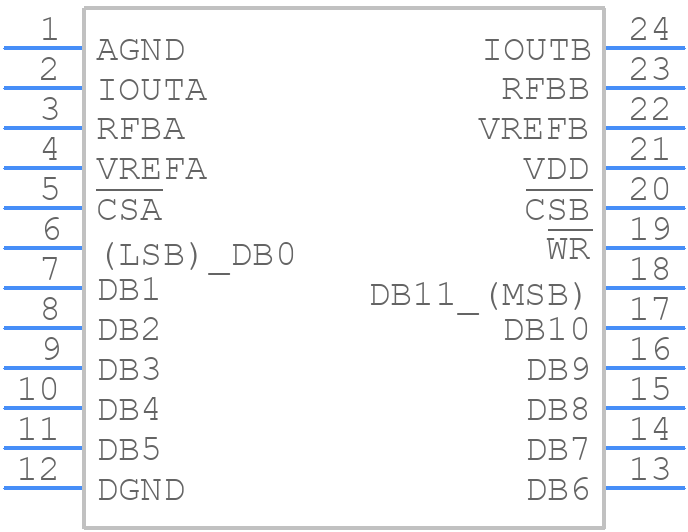

AD7547LNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7547LNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24
click to zoom
3D Models
AD7547LNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24
click to zoom

AD7547LNZ Details

  • Manufacturer Part Number:

    AD7547LNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.165 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    0.8 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7547LNZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and the device operates reliably.
  • To ensure accurate voltage output, it is essential to use a high-quality external voltage reference, such as the ADR421 or ADR452, and to follow proper PCB layout and grounding techniques to minimize noise and interference.
  • The AD7547LNZ can source or sink up to 10 mA of current per channel, making it suitable for driving resistive loads, such as potentiometers or rheostats, but not suitable for driving inductive loads or high-current applications.
  • The AD7547LNZ can be programmed using a 16-bit serial interface. The output voltage is determined by the 16-bit code loaded into the device, which corresponds to a specific voltage output based on the device's internal voltage reference and gain settings.
  • The settling time of the AD7547LNZ is typically around 10 μs to 1% of the final output voltage, depending on the output voltage range and the load capacitance. This is relatively fast compared to other digital-to-analog converters.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7547LNZ Overview

Use the download button to access the AD7547LNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD754, or try a keyword search, such as Digital to Analog Converters
