AD7628KNZ - Analog Devices

Description: AD7628KNZ, 8 bit-Bit DAC Dual, 2.9Msps, Parallel, 20-Pin PDIP

Download AD7628KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

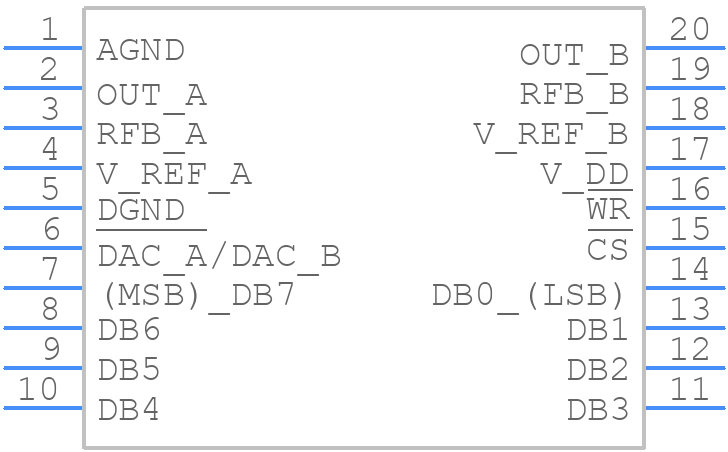

AD7628KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7628KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-20)
click to zoom
3D Models
AD7628KNZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-20)
click to zoom

AD7628KNZ Details

  • Manufacturer Part Number:

    AD7628KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    N-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.1953%

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7628KNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input and output traces short and away from each other to minimize crosstalk.
  • The AD7628KNZ has an internal calibration circuit that can be enabled by setting the CAL pin high. The device also has a self-calibration feature that can be initiated by setting the CAL pin low and then high. Refer to the datasheet for the specific calibration procedure.
  • The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). The digital supply voltage should be applied after the analog supply voltage has reached its nominal value.
  • The AD7628KNZ outputs 16-bit data in a twos-complement format. The output data can be configured to be either right-justified or left-justified. The word length can be set to 16 bits or 18 bits. Refer to the datasheet for the specific output data format and word length configuration.
  • The AD7628KNZ has a CONVST pin that can be used to synchronize the conversion with an external clock or trigger signal. The CONVST pin can be connected to an external clock or trigger signal, and the device will start a conversion on the rising edge of the signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7628KNZ Overview

Use the download button to access the AD7628KNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD762, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
