- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7741BRZ
- Part Number AD7741BRZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - R-8 (SOIC)_2
- Released Date May 24, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7741BRZ Details
-
Manufacturer Part Number:
AD7741BRZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7741BRZ Frequently Asked Questions (FAQs)
-
The AD7741BRZ requires careful layout and placement to minimize noise and ensure accurate measurements. It is recommended to place the device close to the sensor, use a solid ground plane, and keep analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
-
The AD7741BRZ requires a one-time calibration process to ensure accurate measurements. This involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. The calibration process is typically done using the device's built-in calibration mode and a calibration voltage source.
-
The AD7741BRZ has a maximum sampling rate of 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, filter settings, and other factors. It is recommended to consult the datasheet and application notes for specific guidance on achieving the desired sampling rate.
-
The AD7741BRZ can be interfaced with a microcontroller using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) bus. The device's digital output can be connected to the microcontroller's SPI or I2C pins, and the microcontroller can then read the converted data from the AD7741BRZ.
-
The AD7741BRZ has a typical power consumption of 1.5 mA at 3.3 V supply voltage. However, the actual power consumption may vary depending on the device's operating mode, sampling rate, and other factors. It is recommended to consult the datasheet for specific power consumption information.
Trust Checks
Community Provided
System Verified
Community Approved
AD7741BRZ Overview

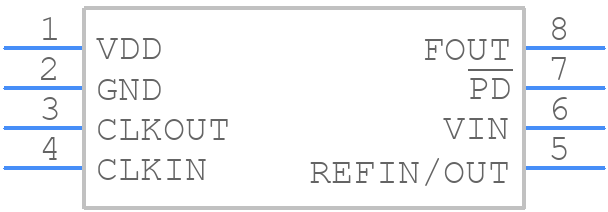

Use the download button to access the AD7741BRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD774,
or try a keyword search, such as Analog Special Function Converters
