- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7741YRZ
- Part Number AD7741YRZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - R-8 (SOIC)_2
- Released Date May 24, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7741YRZ Details
-
Manufacturer Part Number:
AD7741YRZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7741YRZ Frequently Asked Questions (FAQs)
-
The AD7741YRZ requires careful layout and placement to minimize noise and ensure accurate measurements. It is recommended to place the device close to the sensor, use a solid ground plane, and keep analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
-
The AD7741YRZ requires a one-time calibration process to ensure accurate measurements. This involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. The calibration process is typically done using the device's SPI interface and a microcontroller or PC-based software tool.
-
The AD7741YRZ has a maximum sampling rate of 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, filter settings, and other factors. It is recommended to consult the datasheet and application notes for more information on optimizing the sampling rate.
-
The AD7741YRZ is designed to operate from a 2.7V to 5.5V power supply. However, it is recommended to use a 3.3V power supply for optimal performance and to minimize power consumption. Using a 5V power supply may require additional voltage regulation and may affect the device's accuracy and reliability.
-
The AD7741YRZ has a SPI-compatible interface that can be easily interfaced with most microcontrollers. The device requires a 3-wire SPI interface (SCLK, MOSI, and MISO) and a chip select (CS) signal. The microcontroller can be used to configure the device, read data, and control the conversion process.
Trust Checks
Community Provided
System Verified
Community Approved
AD7741YRZ Overview

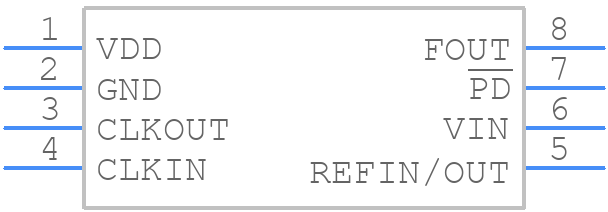

Use the download button to access the AD7741YRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD774,
or try a keyword search, such as Analog Special Function Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
