AD7745ARUZ - Analog Devices

Description: AD7745ARUZ, Capacitance to Digital Converter, 24bit- 16-Pin TSSOP

Download AD7745ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

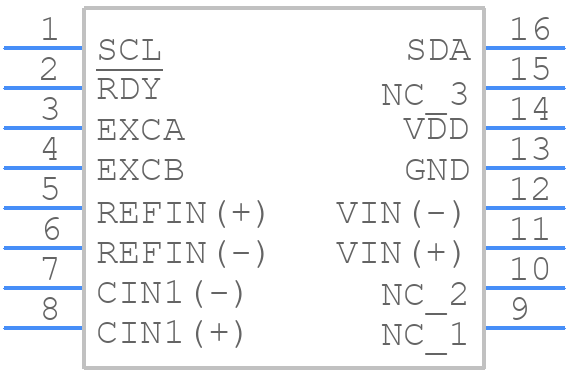

AD7745ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7745ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7745ARUZ
click to zoom
3D Models
AD7745ARUZ - Analog Devices - 3D model - Small Outline Packages - AD7745ARUZ
click to zoom

AD7745ARUZ Details

  • Manufacturer Part Number:

    AD7745ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, MO-153-AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    4.4 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    5 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    24

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.7 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

AD7745ARUZ Frequently Asked Questions (FAQs)

  • The AD7745ARUZ is a high-precision, high-resolution converter, and as such, it requires careful layout and placement to achieve optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling.
  • The AD7745ARUZ has an internal calibration mechanism that can be initiated through the CAL pin. The calibration process involves shorting the CAL pin to the VDD pin, which triggers the internal calibration sequence. The device will then adjust its internal offset and gain to ensure optimal performance.
  • The AD7745ARUZ has a maximum sampling rate of 30,000 samples per second (SPS). However, the actual sampling rate may be limited by the system's clock frequency, the conversion mode, and the output data rate.
  • Yes, the AD7745ARUZ can be used in a multiplexed configuration. The device has a built-in multiplexer that allows multiple channels to be connected to the converter. The multiplexer can be controlled through the MUX[3:0] pins, allowing the user to select the desired channel.
  • The power consumption of the AD7745ARUZ depends on the operating mode and the sampling rate. In normal operation, the device consumes around 15 mW of power. However, in power-down mode, the power consumption can be reduced to as low as 10 μW.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7745ARUZ Overview

Use the download button to access the AD7745ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD774, or try a keyword search, such as Temperature Sensors
