AD7746ARUZ - Analog Devices

Description: AD7746ARUZ, Capacitance to Digital Converter, 24bit- 16-Pin TSSOP

Download AD7746ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

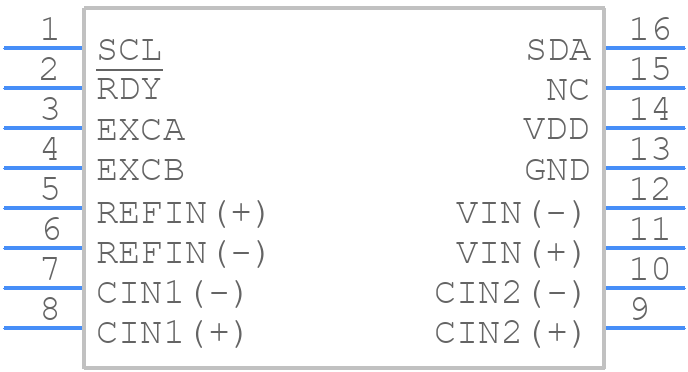

AD7746ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7746ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7746ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7746ARUZ Details

  • Manufacturer Part Number:

    AD7746ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, MO-153-AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    4.4 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    5 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    24

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.7 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

AD7746ARUZ Frequently Asked Questions (FAQs)

  • The AD7746ARUZ requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD7746ARUZ has an internal calibration mechanism that can be initiated through the CAL pin. The device can also be calibrated externally using an external voltage reference. The calibration process is described in detail in the datasheet.
  • The maximum sampling rate of the AD7746ARUZ is 100 kSPS. However, the actual sampling rate may be limited by the system clock frequency and the conversion mode selected.
  • Yes, the AD7746ARUZ can be used with an external voltage reference. The device has a dedicated pin for an external voltage reference, and the datasheet provides guidelines for selecting and connecting an external reference.
  • The AD7746ARUZ can be interfaced with a microcontroller through a serial interface (SPI or I2C). The datasheet provides details on the communication protocol and timing diagrams for both interfaces.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7746ARUZ Overview

Use the download button to access the AD7746ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD774, or try a keyword search, such as Temperature Sensors
