AD7747ARUZ-REEL - Analog Devices

Description: Capacitance to Digital Converter 0.045ksps 24bit Automotive Medical 16-Pin TSSOP T/R

Download AD7747ARUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

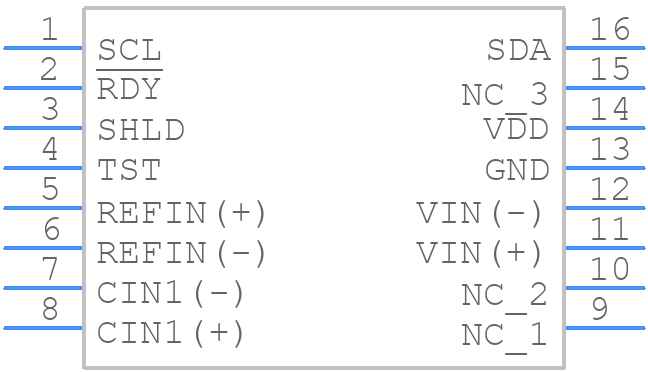

AD7747ARUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7747ARUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7747ARUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7747ARUZ-REEL Details

  • Manufacturer Part Number:

    AD7747ARUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.01%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7747ARUZ-REEL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration and avoid routing digital signals near the analog signals.
  • Calibration involves adjusting the offset and gain of the device. Use the internal calibration feature by setting the CAL pin high and then low. The device will perform a self-calibration. For higher accuracy, use an external calibration signal and adjust the offset and gain registers accordingly.
  • Power up the device in the following sequence: AVDD, DVDD, and then the analog input voltage. Ensure that the power supplies are stable and within the recommended voltage range before applying the analog input voltage.
  • Use a shielded enclosure and keep the device away from high-frequency sources. Use a common-mode choke or a ferrite bead on the analog input lines to filter out high-frequency noise. Ensure good PCB layout practices, such as keeping the analog and digital signals separate and using a solid ground plane.
  • The maximum capacitance of the analog input pins is 10nF. Exceeding this value may affect the device's performance and accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7747ARUZ-REEL Overview

Use the download button to access the AD7747ARUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD774, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
