AD7755AARSRL - Analog Devices

Description: Energy Metering IC With Pulse Output

Download AD7755AARSRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

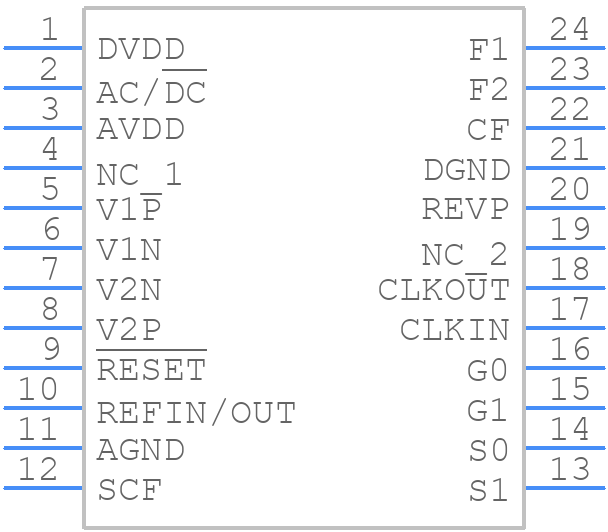

AD7755AARSRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7755AARSRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Shrink Small Outline Package
click to zoom
3D Models
AD7755AARSRL - Analog Devices - 3D model - Small Outline Packages - 24-Lead Shrink Small Outline Package
click to zoom

AD7755AARSRL Details

  • Manufacturer Part Number:

    AD7755AARSRL

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e0

  • Length:

    8.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    5.5 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD7755AARSRL Frequently Asked Questions (FAQs)

  • The AD7755AARSRL is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops.
  • The AD7755AARSRL has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then adjusting the internal calibration registers to achieve the desired accuracy. The calibration procedure is described in the datasheet and application notes.
  • The AD7755AARSRL has a maximum input voltage rating of ±10 V, but it is recommended to limit the input voltage to ±5 V to ensure optimal performance and accuracy. Exceeding the maximum input voltage can result in damage to the device or affect its accuracy.
  • The AD7755AARSRL is designed for differential input signals, but it can be used with a single-ended input signal with some limitations. A single-ended input can be connected to the IN+ pin, and the IN- pin should be tied to a fixed voltage reference. However, this configuration may affect the common-mode rejection ratio and noise performance of the device.
  • The AD7755AARSRL has a serial interface that can be connected to a microcontroller using a SPI or I2C interface. The interface protocol is described in the datasheet, and example code is available in the application notes and software development kits.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7755AARSRL Overview

Use the download button to access the AD7755AARSRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD775, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
