AD7801BRUZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 3V/5V SINGLE 8 BIT DAC I.C.

Download AD7801BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

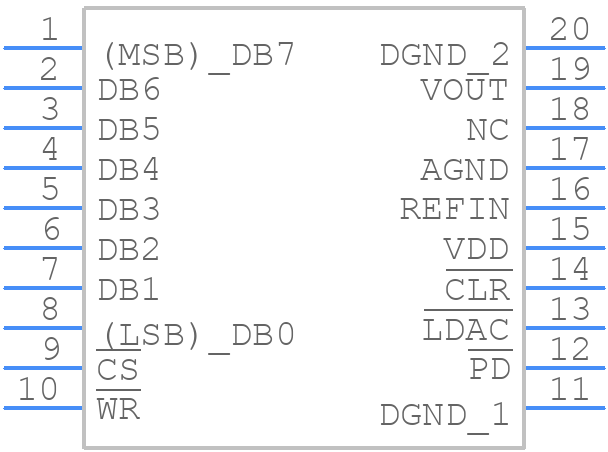

AD7801BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7801BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)_1
click to zoom
3D Models
AD7801BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)_1
click to zoom

AD7801BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD7801BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    1.2 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7801BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7801BRUZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and crosstalk.
  • To ensure proper decoupling, use a 10uF ceramic capacitor between the VCC pin and the GND pin, and a 100nF ceramic capacitor between the AVCC pin and the GND pin. Additionally, use a 1uF capacitor between the VREF pin and the GND pin to filter the reference voltage.
  • The recommended input voltage range for the AD7801BRUZ-REEL7 is 2.7V to 5.5V. Operating the device outside of this range may affect its performance, including reduced accuracy, increased noise, and potential damage to the device.
  • The AD7801BRUZ-REEL7 can be programmed using the SDA and SCL pins to set the output voltage. The device's output voltage range is 0.6V to 5.5V, with a maximum output current of 50mA. However, the output voltage range may be limited by the input voltage and the device's internal voltage regulator.
  • The AD7801BRUZ-REEL7 has a recommended operating temperature range of -40°C to 125°C. To ensure the device operates within this range, use a heat sink or thermal pad to dissipate heat, and avoid operating the device in high-temperature environments or with high-power applications.
