AD7801BRZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 3V/5V SINGLE 8 BIT DAC I.C.

Download AD7801BRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

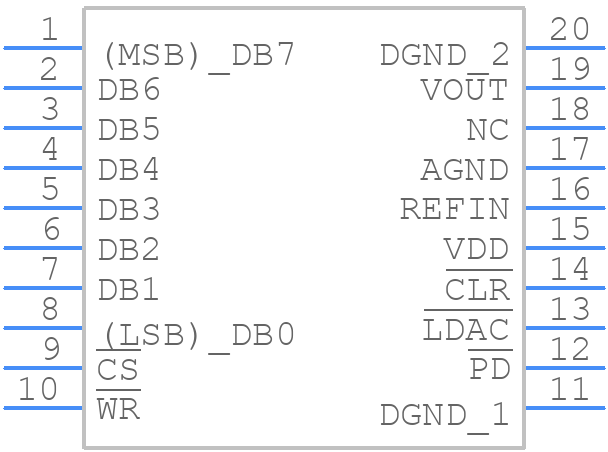

AD7801BRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7801BRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-20 (SOIC)
click to zoom
3D Models
AD7801BRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-20 (SOIC)
click to zoom

AD7801BRZ-REEL7 Details

  • Manufacturer Part Number:

    AD7801BRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    1.2 µs

  • Supply Current-Max:

    1.75 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7801BRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7801BRZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and crosstalk.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves shorting the CAL pin to the VOUT pin and adjusting the output voltage to the desired level using an external trimmer resistor. It's also important to use a high-precision voltage reference and to minimize noise and thermal effects during calibration.
  • The AD7801BRZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or heat sink, and to minimize power dissipation. Additionally, consider using thermal interface materials and following proper PCB design guidelines to minimize thermal resistance.
  • The AD7801BRZ-REEL7 is a high-reliability device that meets various industry standards, including automotive (AEC-Q100), industrial, and medical (IEC 60601-1) requirements. It's essential to review the device's certification and compliance information, such as the PPAP (Production Part Approval Process) documentation, to ensure it meets the specific requirements of your application.
  • To troubleshoot issues with the AD7801BRZ-REEL7, start by verifying the power supply voltage, checking for proper PCB layout and decoupling, and ensuring that the device is properly calibrated. Use an oscilloscope to measure the output voltage and check for noise or oscillations. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7801BRZ-REEL7 Overview

Use the download button to access the AD7801BRZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD780, or try a keyword search, such as Digital to Analog Converters
