AD7808BRZ - Analog Devices

Description: Analog Devices AD7808BRZ, 8-Channel Serial DAC, 667ksps, 24-Pin SOIC W

Download AD7808BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

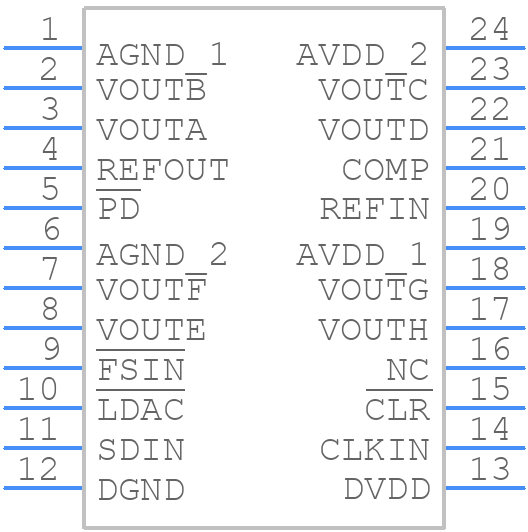

Symbol
AD7808BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7808BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-24
click to zoom
3D Models
AD7808BRZ - Analog Devices - 3D model - Small Outline Packages - R-24
click to zoom

AD7808BRZ Details

  • Manufacturer Part Number:

    AD7808BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.293%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    4 µs

  • Settling Time-Nom (tstl):

    1.5 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7808BRZ Frequently Asked Questions (FAQs)

  • The AD7808BRZ is a sensitive device and requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power supply, use a solid ground plane, and keep the input and output traces short and separate to minimize noise coupling.
  • To ensure proper decoupling, it is recommended to use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the device. Additionally, a 1uF ceramic capacitor can be used on the output pin to further reduce noise.
  • The maximum output current of the AD7808BRZ is 5mA. Exceeding this limit can cause the device to overheat, reduce its accuracy, and affect its overall performance. It is recommended to ensure that the output current is within the specified limit to maintain optimal performance.
  • The AD7808BRZ is sensitive to input voltage noise, which can affect its accuracy and performance. To reduce noise, it is recommended to use a low-noise voltage regulator, add a noise filter capacitor (e.g., 10uF) at the input, and use a shielded cable to connect the input signal.
  • The thermal resistance of the AD7808BRZ is 30°C/W. High temperatures can affect the device's accuracy, noise performance, and overall reliability. It is recommended to ensure good airflow, use a heat sink if necessary, and avoid operating the device in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7808BRZ Overview

Use the download button to access the AD7808BRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD780, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
