AD7814ARMZ-REEL - Analog Devices

Description: Temperature Sensor Digital, Local -55°C ~ 125°C 10 b 8-MSOP

Download AD7814ARMZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

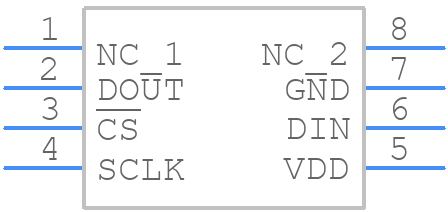

AD7814ARMZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7814ARMZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)_2023
click to zoom
3D Models
AD7814ARMZ-REEL - Analog Devices - 3D model - Small Outline Packages - RM-8 (MSOP)_2023
click to zoom

AD7814ARMZ-REEL Details

  • Manufacturer Part Number:

    AD7814ARMZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Accuracy-Max (Cel):

    3.5 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    10

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.4 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.16

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

AD7814ARMZ-REEL Frequently Asked Questions (FAQs)

  • The AD7814ARMZ-REEL is a sensitive analog device, and proper layout and placement are crucial. It's recommended to keep the device away from high-frequency sources, use a solid ground plane, and keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device to minimize noise.
  • The AD7814ARMZ-REEL requires calibration for accurate temperature measurements. This can be done by using the internal calibration circuitry or by using an external calibration source. It's recommended to follow the calibration procedure outlined in the datasheet and to use a high-accuracy temperature reference source.
  • The recommended power-up sequence for the AD7814ARMZ-REEL is to apply the analog power supply (VCC) before the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or incorrect operation.
  • The AD7814ARMZ-REEL outputs a 10-bit digital code that represents the temperature reading. To ensure accurate temperature readings, it's recommended to use a high-accuracy analog-to-digital converter (ADC) and to apply the correct scaling and offset to the output data. Additionally, it's recommended to use a digital filter to remove any noise or glitches in the output data.
  • The AD7814ARMZ-REEL is a sensitive temperature sensor, and thermal management is crucial for accurate measurements. It's recommended to use a thermal interface material (TIM) to ensure good thermal contact between the device and the heat source. Additionally, it's recommended to use a heat sink or a thermal management system to dissipate heat away from the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7814ARMZ-REEL Overview

Use the download button to access the AD7814ARMZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD781, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
