AD7817BRUZ - Analog Devices

Description: AD7817BRUZ, 10 bit ADC SPI, 16-Pin TSSOP

Download AD7817BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

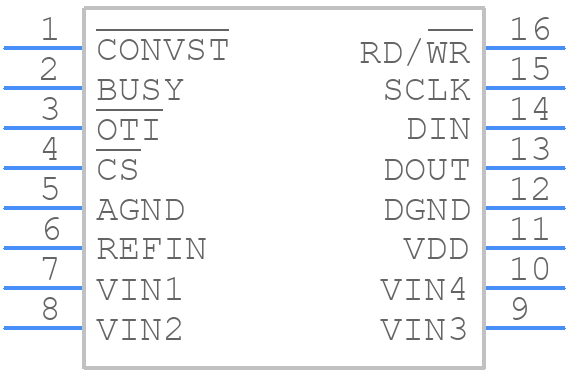

Symbol
AD7817BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7817BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7817BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7817BRUZ Details

  • Manufacturer Part Number:

    AD7817BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    4.4 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    5 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    10

  • Number of Terminals:

    16

  • Operating Current-Max:

    2 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    5-WIRE INTERFACE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

AD7817BRUZ Frequently Asked Questions (FAQs)

  • The AD7817BRUZ is a sensitive analog device, and proper layout and placement are crucial. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The AD7817BRUZ has an internal calibration circuit that allows for self-calibration. To calibrate the device, apply a known input voltage to the VIN pin, and then toggle the CAL pin high and low. The device will then perform a self-calibration sequence. Refer to the datasheet for the specific calibration procedure.
  • The AD7817BRUZ has an absolute maximum input voltage rating of 7 V. Exceeding this voltage can cause permanent damage to the device. It is recommended to use input voltage limiting resistors or voltage clamping circuits to prevent overvoltage conditions.
  • The AD7817BRUZ has a serial interface that can be connected to a microcontroller. The device supports SPI and I2C communication protocols. The microcontroller can read the converted data from the AD7817BRUZ by sending a read command and clocking in the data bits.
  • The AD7817BRUZ has a typical power consumption of 350 μA. To reduce power consumption, consider using the device's power-down mode, reducing the sampling rate, or using a lower supply voltage. Additionally, using a low-power microcontroller and optimizing the system's power management can also help reduce overall power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7817BRUZ Overview

Use the download button to access the AD7817BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD781, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
