AD7837BRZ - Analog Devices

Description: AD7837BRZ, 12 bit-Bit DAC Dual, 250ksps, Parallel, 24-Pin SOIC W

Download AD7837BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

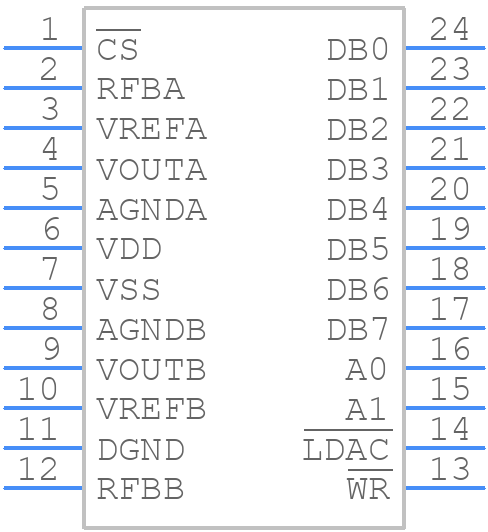

AD7837BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7837BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (r-24)-ren1
click to zoom
3D Models
AD7837BRZ - Analog Devices - 3D model - Small Outline Packages - (r-24)-ren1
click to zoom

AD7837BRZ Details

  • Manufacturer Part Number:

    AD7837BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7837BRZ Frequently Asked Questions (FAQs)

  • The AD7837BRZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The AD7837BRZ has a built-in POR and BOR circuitry that resets the device during power-up or brown-out conditions. To handle these resets, ensure that the power supply is stable and within the recommended operating range. Also, add external circuitry to debounce the reset signal and ensure a clean reset pulse.
  • The AD7837BRZ can operate with a clock frequency up to 1.5 MHz. However, the recommended clock frequency is between 100 kHz to 500 kHz for optimal performance and to minimize noise.
  • To optimize the ADC performance, ensure that the input signal is within the recommended range, use a low-noise analog power supply, and minimize digital noise coupling into the analog circuitry. Additionally, use the device's built-in features such as the analog input buffer and the programmable gain amplifier to optimize the ADC performance.
  • The AD7837BRZ can be interfaced with a microcontroller using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) interface. Ensure that the microcontroller's interface is compatible with the AD7837BRZ's interface, and use a level translator if necessary. Also, ensure that the microcontroller's clock frequency is synchronized with the AD7837BRZ's clock frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7837BRZ Overview

Use the download button to access the AD7837BRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD783, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
