AD7840JNZ - Analog Devices

Description: 14 Bit Digital to Analog Converter 1 24-PDIP

Download AD7840JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

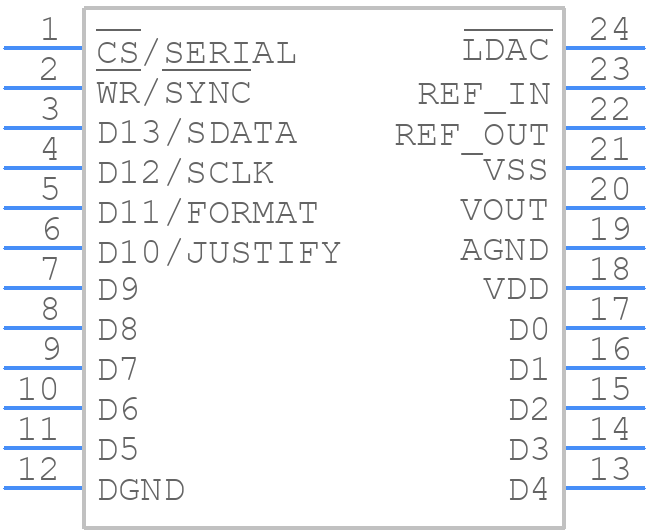

AD7840JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7840JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7840JNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7840JNZ Details

  • Manufacturer Part Number:

    AD7840JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    3 V

  • Analog Output Voltage-Min:

    -3 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL, PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.48 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    4 µs

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7840JNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the VREF pin and keep the AVDD and DVDD pins decoupled with 0.1uF capacitors.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves writing a specific code to the CAL register. Additionally, ensure that the VREF pin is properly connected and the internal reference voltage is stable.
  • The recommended power-up sequence is to apply AVDD first, followed by DVDD, and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or incorrect operation.
  • The BUSY signal indicates when the AD7840JNZ is busy with a conversion. To handle this signal, use it as an input to your microcontroller or FPGA to synchronize the data transfer and ensure that the conversion is complete before accessing the data.
  • The maximum clock frequency for the AD7840JNZ is 20 MHz. Exceeding this frequency may result in incorrect operation or damage to the device.
