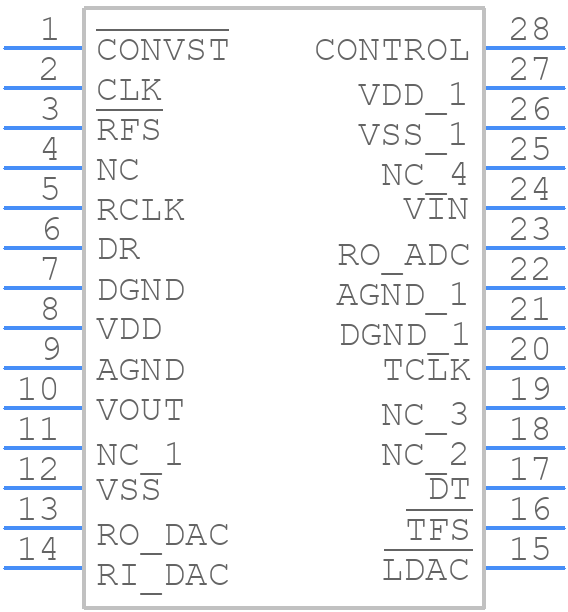

AD7868ARZ - Analog Devices

AD7868ARZ Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the AD7868ARZ to minimize noise and ensure optimal performance?
  The AD7868ARZ requires careful layout and routing to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
• How do I properly configure the AD7868ARZ for my specific application?
  The AD7868ARZ has several configuration options that need to be set up correctly for optimal performance. It is recommended to consult the datasheet and the application notes provided by Analog Devices Inc to determine the correct configuration for your specific application. Additionally, you can use the AD7868ARZ evaluation board and the accompanying software to experiment with different configurations and find the one that works best for your application.
• What is the maximum sampling rate that can be achieved with the AD7868ARZ?
  The maximum sampling rate of the AD7868ARZ is 1 MSPS (million samples per second). However, the actual sampling rate that can be achieved may be limited by the system clock frequency, the conversion time, and the settling time of the analog input signal. It is recommended to consult the datasheet and the application notes to determine the maximum sampling rate that can be achieved in your specific application.
• How do I handle the digital output data from the AD7868ARZ?
  The AD7868ARZ outputs digital data in a 16-bit parallel format. The digital output data can be handled using a microcontroller or a digital signal processor. It is recommended to consult the datasheet and the application notes to determine the correct way to handle the digital output data in your specific application. Additionally, you can use the AD7868ARZ evaluation board and the accompanying software to experiment with different ways of handling the digital output data.
• What is the power consumption of the AD7868ARZ?
  The power consumption of the AD7868ARZ depends on the operating mode and the clock frequency. In normal operation, the power consumption is typically around 15 mW. However, in power-down mode, the power consumption can be reduced to as low as 1 μW. It is recommended to consult the datasheet to determine the power consumption in your specific application.
