- Part Number AD790JNZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - PDIP-(N-8)
- Released Date Jun 25, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD790JNZ Details
-
Manufacturer Part Number:
AD790JNZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Package Description:
MINI, PLASTIC, DIP-8
-
Pin Count:
8
-
Manufacturer Package Code:
N-8
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD790JNZ Frequently Asked Questions (FAQs)
-
The AD790JNZ is a high-speed amplifier, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise. Additionally, it is recommended to place the amplifier close to the signal source and to use a low-impedance output to reduce ringing.
-
The gain resistor values for the AD790JNZ depend on the desired gain and bandwidth of the amplifier. A higher gain resistor value will result in a higher gain, but may also reduce the bandwidth of the amplifier. It is recommended to consult the datasheet and to use the gain resistor calculator tool provided by Analog Devices to determine the optimal gain resistor values for your specific application.
-
The maximum power dissipation of the AD790JNZ is 1.4W. To ensure that the device does not overheat, it is recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, it is recommended to operate the device within the recommended operating temperature range of -40°C to 125°C.
-
Common issues with the AD790JNZ, such as oscillation or instability, can often be attributed to poor layout and placement, incorrect gain resistor values, or inadequate power supply decoupling. To troubleshoot these issues, it is recommended to check the layout and placement of the device, verify the gain resistor values, and ensure that the power supply is adequately decoupled. Additionally, it is recommended to consult the datasheet and application notes for troubleshooting guidance.
-
The AD790JNZ has built-in ESD protection and latch-up protection features to protect the device from electrostatic discharge and latch-up events. The device has a human body model (HBM) ESD rating of 2kV and a machine model (MM) ESD rating of 200V. Additionally, the device has a latch-up protection feature that prevents the device from latching up in the event of an overvoltage condition.
Trust Checks
Community Provided
System Verified
Community Approved
AD790JNZ Overview

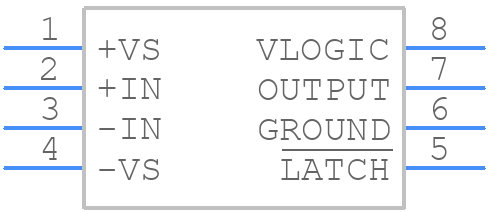

Use the download button to access the AD790JNZ schematic symbol, PCB footprint, and 3D model.
