AD790JR - Analog Devices

Description: Analog Comparators Fast Prec Comparator

Download AD790JR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

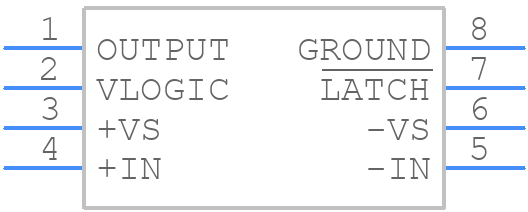

AD790JR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD790JR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R8
click to zoom
3D Models
AD790JR - Analog Devices - 3D model - Small Outline Packages - R8
click to zoom

AD790JR Details

  • Manufacturer Part Number:

    AD790JR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    6.5 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    45 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD790JR Frequently Asked Questions (FAQs)

  • The AD790JR is a high-precision, low-noise amplifier, and proper layout and placement are crucial. It is recommended to place the AD790JR close to the signal source, use a ground plane, and keep the input traces as short as possible. Additionally, decoupling capacitors should be placed close to the device to minimize noise.
  • The AD790JR is specified to operate from -40°C to +125°C. Ensure that the device is properly heat-sinked, and the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the device when designing the system.
  • The recommended input impedance for the AD790JR is 1 kΩ or higher. A lower input impedance can lead to reduced gain accuracy and increased noise. It is essential to ensure that the input impedance is within the recommended range to achieve optimal performance.
  • To minimize EMI and RFI, use proper shielding, grounding, and filtering techniques. Ensure that the AD790JR is placed in a shielded environment, and use filters or chokes to reduce high-frequency noise. Additionally, consider using a Faraday cage or a shielded enclosure to reduce electromagnetic radiation.
  • The recommended power supply decoupling for the AD790JR is to use a 10 μF capacitor in parallel with a 100 nF capacitor, placed close to the device. Proper decoupling ensures that the amplifier operates with minimal noise and ripple, resulting in optimal performance.
