AD790JRZ - Analog Devices

Description: Analog Comparators HIGH SPEED COMPARATOR IC

Download AD790JRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

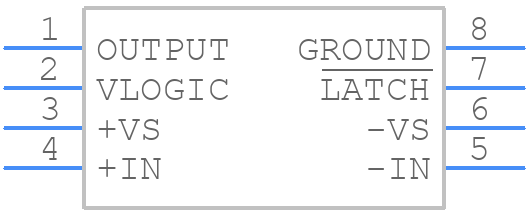

Symbol
AD790JRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD790JRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - - [SOIC_N]-
click to zoom
3D Models
AD790JRZ - Analog Devices - 3D model - Small Outline Packages - - [SOIC_N]-
click to zoom

AD790JRZ Details

  • Manufacturer Part Number:

    AD790JRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    6.5 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    45 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD790JRZ Frequently Asked Questions (FAQs)

  • The AD790JRZ is a high-precision, low-noise amplifier, and proper layout and placement are crucial. It is recommended to place the device close to the signal source, use a ground plane, and keep the input traces short and shielded. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The AD790JRZ is specified to operate from -40°C to +125°C. Ensure that the device is properly heat-sinked, and the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the device when designing the system.
  • The recommended input impedance for the AD790JRZ is 1 kΩ or higher. A lower input impedance can lead to reduced gain accuracy and increased noise. It is essential to ensure that the input impedance is within the recommended range to achieve optimal performance.
  • To minimize EMI and RFI, use shielded cables, keep the input traces short, and use a ground plane. Additionally, consider using EMI filters or shielding on the device and its surrounding components. Proper layout and grounding techniques can also help reduce EMI and RFI.
  • The recommended power supply decoupling for the AD790JRZ is a 10 μF capacitor in parallel with a 100 nF capacitor, placed close to the device's power pins. Proper decoupling helps to reduce noise, ensure stability, and improve the amplifier's overall performance.
