AD7943ANZ-B - Analog Devices

Description: AD7943ANZ-B, 12 bit-Bit DAC 1.7Msps, Serial, 16-Pin PDIP

Download AD7943ANZ-B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

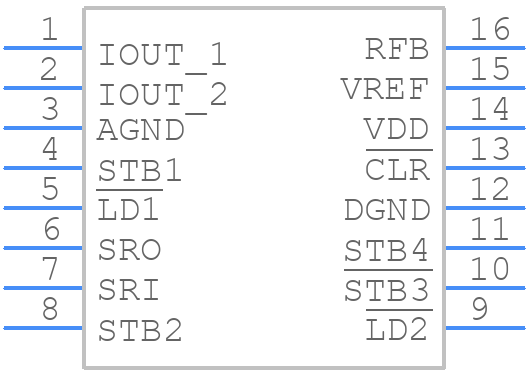

Symbol
AD7943ANZ-B - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7943ANZ-B - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16_1
click to zoom
3D Models
AD7943ANZ-B - Analog Devices - 3D model - Dual-In-Line Packages - N-16_1
click to zoom

AD7943ANZ-B Details

  • Manufacturer Part Number:

    AD7943ANZ-B

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7943ANZ-B Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7943ANZ-B involves separating the analog and digital sections, using a solid ground plane, and keeping the analog input traces short and away from digital signals. Additionally, it's recommended to use a low-impedance source for the analog input and to decouple the power supplies with capacitors.
  • To optimize the AD7943ANZ-B's performance, consider the following: choose the correct gain setting for your input signal range, select the appropriate clock frequency, and adjust the conversion rate to meet your application's requirements. Additionally, consider using the device's built-in features such as the internal reference voltage and the programmable offset and gain adjustments.
  • Potential sources of error in the AD7943ANZ-B include noise, offset voltage, gain error, and nonlinearity. To mitigate these errors, use proper layout and routing, decouple the power supplies, use a low-noise clock source, and consider using the device's built-in error correction features such as the internal reference voltage and the programmable offset and gain adjustments.
  • The AD7943ANZ-B can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. The device's digital output can be connected directly to the microcontroller or FPGA's digital input pins. Ensure that the interface protocol and clock frequency are compatible with the microcontroller or FPGA's requirements.
  • The AD7943ANZ-B has a typical power consumption of 15 mW at 3 V supply voltage. The device's thermal characteristics include a junction-to-ambient thermal resistance of 30°C/W and a maximum junction temperature of 150°C. Ensure that the device is properly heat-sinked and that the operating temperature is within the recommended range.
