AD7945BNZ - Analog Devices

Description: AD7945BNZ, 12 bit-Bit DAC 1.7Msps, Parallel, 20-Pin PDIP

Download AD7945BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

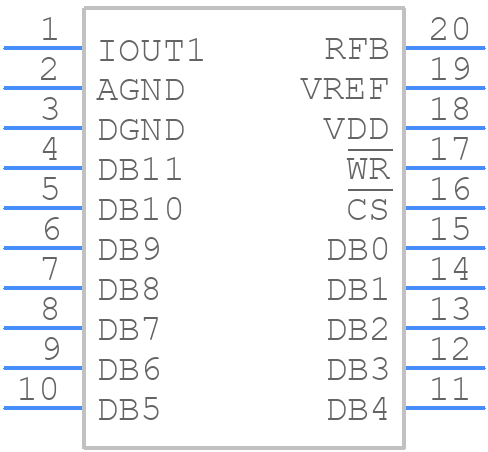

AD7945BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

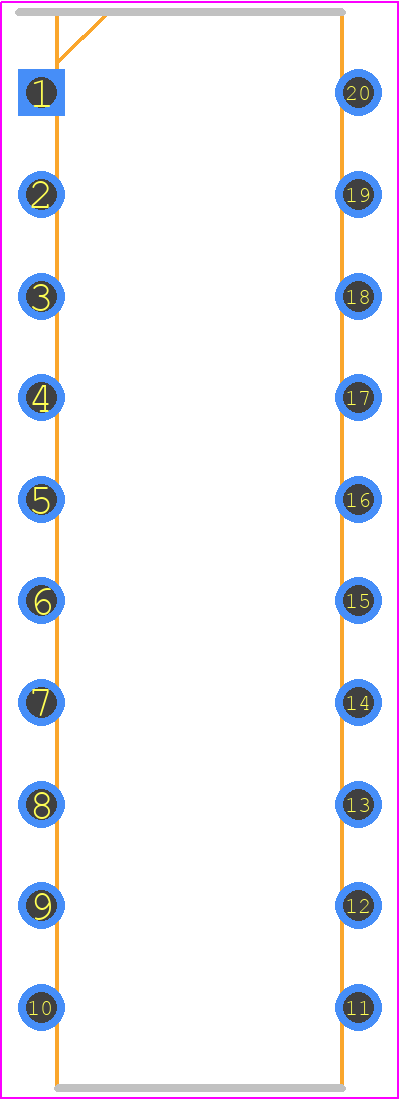

AD7945BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20-Pin PDIP *
click to zoom
3D Models
AD7945BNZ - Analog Devices - 3D model - Dual-In-Line Packages - 20-Pin PDIP *
click to zoom

AD7945BNZ Details

  • Manufacturer Part Number:

    AD7945BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    N-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    25.2 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    0.6 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7945BNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • To optimize the AD7945BNZ for low-power applications, use the lowest possible clock frequency, disable the internal reference, and use the power-down mode when not converting. Additionally, consider using a lower supply voltage and reducing the analog input range to minimize power consumption.
  • The recommended calibration procedure for the AD7945BNZ involves a two-point calibration, where the ADC is calibrated at two known input voltages, typically 0V and the full-scale voltage. This calibration procedure can be done using an external microcontroller or a dedicated calibration circuit.
  • The AD7945BNZ's digital output data can be handled by using a serial peripheral interface (SPI) or a parallel interface. The microcontroller or FPGA can be configured to read the data from the AD7945BNZ using the SPI or parallel interface, and then process the data accordingly.
  • The AD7945BNZ has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within the recommended temperature range, and adequate heat sinking and thermal management should be implemented to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7945BNZ Overview

Use the download button to access the AD7945BNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD794, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
