AD797ARZ-REEL - Analog Devices

Description: Microphone Preamplifiers Ultralow Distortion Ultralow Noise

Download AD797ARZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

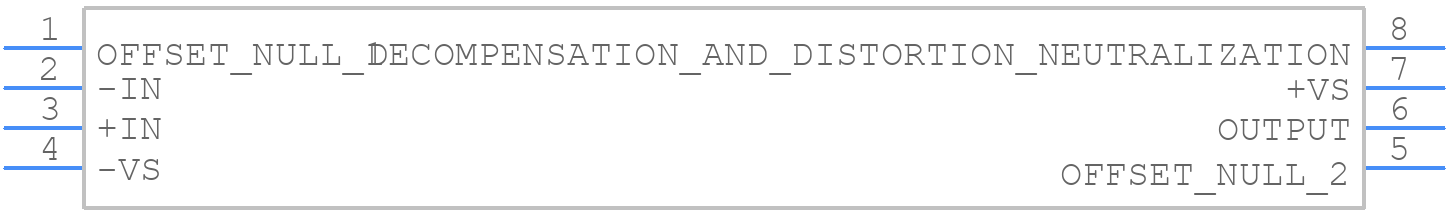

Symbol
AD797ARZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD797ARZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R8
click to zoom
3D Models
AD797ARZ-REEL - Analog Devices - 3D model - Small Outline Packages - R8
click to zoom

AD797ARZ-REEL Details

  • Manufacturer Part Number:

    AD797ARZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    3 µA

  • Bias Current-Max (IIB) @25C:

    1.5 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    YES (AVCL>=10)

  • Input Offset Voltage-Max:

    180 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    12.5 V/us

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    10.5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    110000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    3.9 mm

AD797ARZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD797ARZ-REEL involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. Additionally, it's recommended to use a thermal relief pattern on the PCB to help dissipate heat.
  • The choice of gain resistors for the AD797ARZ-REEL depends on the desired gain and bandwidth of the amplifier. A good starting point is to use 1 kΩ to 10 kΩ resistors for gains up to 100, and 100 Ω to 1 kΩ resistors for gains above 100. It's also important to consider the resistor's tolerance, temperature coefficient, and parasitic capacitance.
  • The maximum power dissipation of the AD797ARZ-REEL is 1.4 W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vee x Iee), where Vcc and Vee are the supply voltages, and Icc and Iee are the supply currents. Make sure to also consider the thermal resistance of the package and the ambient temperature.
  • Yes, the AD797ARZ-REEL can be used as a unity-gain buffer. However, it's important to consider the input bias current and input offset voltage, which can affect the output voltage. Additionally, the output impedance of the buffer should be considered, especially if the load is capacitive or has a high impedance.
  • To protect the AD797ARZ-REEL from EMI, use shielding, filtering, and grounding techniques. Place the op-amp in a shielded enclosure, use ferrite beads or chokes on the input and output lines, and connect the grounds of the op-amp and the surrounding circuitry to a single point. Additionally, use a low-pass filter or a common-mode choke to filter out high-frequency noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD797ARZ-REEL Overview

Use the download button to access the AD797ARZ-REEL schematic symbol, PCB footprint, and 3D model.
