AD8003ACPZ-REEL7 - Analog Devices

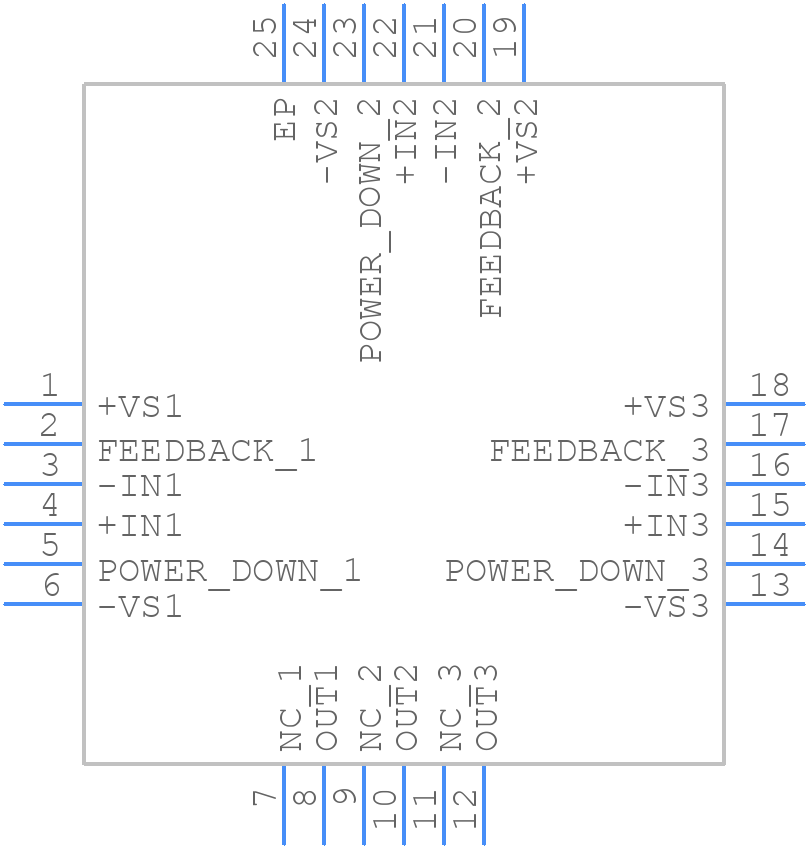

AD8003ACPZ-REEL7 Details

• Manufacturer Part Number:

  AD8003ACPZ-REEL7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  LFCSP-24

• Pin Count:

  24

• Manufacturer Package Code:

  CP-24-10

• Country Of Origin:

  South Korea

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  CURRENT-FEEDBACK

• Average Bias Current-Max (IIB):

  50 µA

• Common-mode Reject Ratio-Min:

  51 dB

• Common-mode Reject Ratio-Nom:

  48 dB

• Frequency Compensation:

  NO

• Input Offset Voltage-Max:

  9300 µV

• JESD-30 Code:

  R-XQCC-N24

• JESD-609 Code:

  e3

• Length:

  4 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage Limit-Max:

  -5.5 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  3

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC24,.16SQ,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Slew Rate-Nom:

  3800 V/us

• Supply Current-Max:

  10.2 mA

• Supply Voltage Limit-Max:

  5.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Wideband:

  YES

• Width:

  4 mm
