AD80066KRSZ - Analog Devices

Description: Analog Devices AD80066KRSZ, 16 bit Serial ADC,, 28-Pin SSOP

Download AD80066KRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

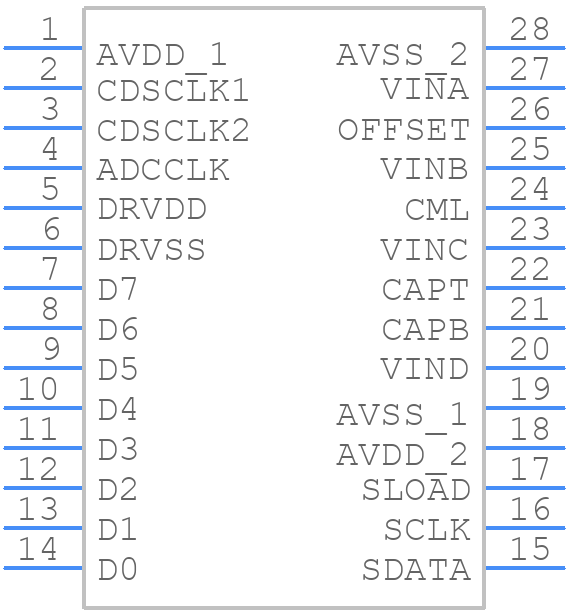

AD80066KRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD80066KRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)
click to zoom
3D Models
AD80066KRSZ - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)
click to zoom

AD80066KRSZ Details

  • Manufacturer Part Number:

    AD80066KRSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Address Bus Width:

    4

  • Barrel Shifter:

    NO

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    24 MHz

  • External Data Bus Width:

    8

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

AD80066KRSZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD80066KRSZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input termination for the AD80066KRSZ depends on the specific application. For a 50Ω source, a 50Ω termination is recommended. For a high-impedance source, a 1kΩ to 10kΩ termination is recommended. The datasheet provides more information on input termination.
  • The maximum power dissipation of the AD80066KRSZ is 1.4W. However, this can be affected by the operating conditions, such as temperature and supply voltage. It's essential to ensure that the device is operated within the recommended operating conditions to avoid overheating.
  • Yes, the AD80066KRSZ can be used in a non-inverting configuration. However, this requires additional external components, such as resistors and capacitors, to set the gain and frequency response. The datasheet provides more information on non-inverting configurations.
  • To filter out noise and interference in an AD80066KRSZ circuit, use a combination of passive and active filtering techniques. This can include adding capacitors and resistors to filter out high-frequency noise, and using shielding and grounding techniques to reduce electromagnetic interference.
