AD8028AR - Analog Devices

Description: AD8028AR Analog Devices, High Speed, Op Amp, 190MHz, 8-Pin SOIC

Download AD8028AR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

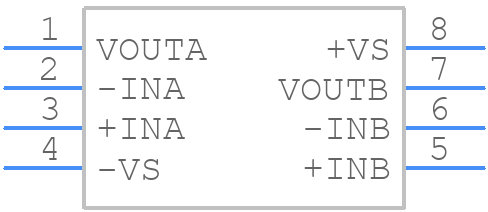

AD8028AR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8028AR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-08
click to zoom
3D Models
AD8028AR - Analog Devices - 3D model - Small Outline Packages - R-08
click to zoom

AD8028AR Details

  • Manufacturer Part Number:

    AD8028AR

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    11 µA

  • Bandwidth (3dB)-Nom:

    190 MHz

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.9 µA

  • Input Offset Voltage-Max:

    900 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Peak Reflow Temperature (Cel):

    240

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    90 V/us

  • Supply Current-Max:

    17 mA

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    100

  • Wideband:

    NO

  • Width:

    3.9 mm

AD8028AR Frequently Asked Questions (FAQs)

  • A good layout and PCB design for the AD8028AR involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supplies with capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended. See the AD8028AR evaluation board layout as a reference.
  • The gain resistors (Rf and Rg) should be chosen based on the desired gain and bandwidth. A good starting point is to use 1 kΩ for Rf and 1 kΩ to 10 kΩ for Rg. The ratio of Rf to Rg determines the gain. For high gains, use smaller values of Rf and larger values of Rg. See the AD8028AR datasheet for more information.
  • The AD8028AR can drive capacitive loads up to 1 nF without oscillation. However, it's recommended to use a series resistor (Rs) to dampen the output and prevent oscillation. The value of Rs depends on the capacitive load and the desired bandwidth.
  • To reduce noise and EMI, use a low-noise power supply, decouple the power supplies with capacitors, and use a shielded enclosure. Keep the input and output traces short and away from noise sources, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
  • The AD8028AR can operate from a single supply voltage of 2.7 V to 5.5 V or a dual supply voltage of ±1.35 V to ±2.75 V. The recommended power supply voltage range is 3.3 V or 5 V for most applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8028AR Overview

Use the download button to access the AD8028AR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD802, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
