AD8028ARMZ-REEL7 - Analog Devices

Description: ► High speed ► 190 MHz, −3 dB bandwidth (G = +1) ► 100 V/µs slew rate ► Low distortion ► 120 dBc at 1 MHz SFDR ► 80 dBc at 5 MHz SFDR ► Selectable input crossover threshold ► Low noise ► 4.3 nV/√Hz ► 1.6 pA/√Hz ► Low offset voltage: 900 µV maximum ► Low power: 6.5 mA per amplifier supply current ► Power-down mode ► No phase reversal: VIN > |VS| + 200 mV ► Wide supply range: 2.7 V to 12 V ► Small packaging: 8-lead SOIC, 6-lead SOT-23, 10-lead MSOP ► Qualified for automotive applications (AD80

Download AD8028ARMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

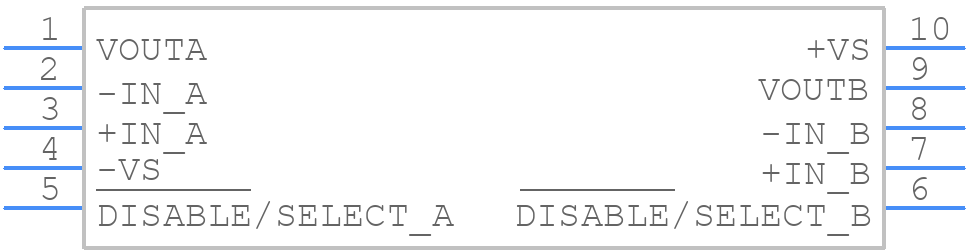

AD8028ARMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8028ARMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-10)
click to zoom
3D Models
AD8028ARMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - (RM-10)
click to zoom

AD8028ARMZ-REEL7 Details

  • Manufacturer Part Number:

    AD8028ARMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    6 µA

  • Bandwidth (3dB)-Nom:

    190 MHz

  • Common-mode Reject Ratio-Min:

    88 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Input Offset Current-Max (IIO):

    9 µA

  • Input Offset Voltage-Max:

    900 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Offset:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP10,.20,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    90 V/us

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    100

  • Wideband:

    NO

  • Width:

    3 mm

AD8028ARMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8028 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • The gain resistor values depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific requirements of your application. You can also use Analog Devices' online tools, such as the ADIsimPE tool, to help with the design.
  • The maximum power dissipation of the AD8028 is 1.4W. To ensure you don't exceed it, calculate the power dissipation based on the supply voltage, output current, and package thermal resistance. You can use the thermal resistance values provided in the datasheet to estimate the junction temperature, and ensure it stays within the recommended operating range.
  • To filter out noise and interference, use a combination of passive and active filtering techniques. Use capacitors to filter out high-frequency noise, and consider adding a low-pass filter or a notch filter to remove specific frequency components. You can also use shielding and grounding techniques to reduce electromagnetic interference.
  • The recommended operating temperature range for the AD8028 is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance. It's essential to ensure the device stays within the recommended operating temperature range to maintain its performance and reliability.
