AD8062AR - Analog Devices

Description: OP Amp Dual Volt Fdbk R-R O/P 8V 8-Pin SOIC N Tube

Download AD8062AR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

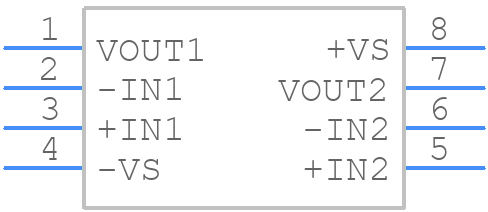

Symbol
AD8062AR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8062AR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD8062AR - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD8062AR Details

  • Manufacturer Part Number:

    AD8062AR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8.5 µA

  • Bias Current-Max (IIB) @25C:

    9 µA

  • Common-mode Reject Ratio-Min:

    62 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    95 V/us

  • Slew Rate-Nom:

    280 V/us

  • Supply Current-Max:

    19 mA

  • Supply Voltage Limit-Max:

    8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    1400

  • Wideband:

    YES

  • Width:

    3.9 mm

AD8062AR Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and away from noise sources, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be powered from a low-impedance source.
  • The AD8062AR is an ESD-sensitive device, and proper handling and storage procedures should be followed to prevent damage. This includes using anti-static wrist straps, mats, and bags, and avoiding direct contact with the device pins.
  • The maximum power dissipation of the AD8062AR is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
  • The AD8062AR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's power dissipation and ensure proper heat sinking to prevent overheating.
  • The input and output capacitors should be selected based on the frequency response and impedance requirements of the application. A general rule of thumb is to use capacitors with a low equivalent series resistance (ESR) and a high self-resonant frequency (SRF). X7R or X5R ceramic capacitors are good options for most applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8062AR Overview

Use the download button to access the AD8062AR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD806, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
